Запчасти Case 855D (2-48) - RADIATOR ASSEMBLY, MODINE (02) - ENGINE

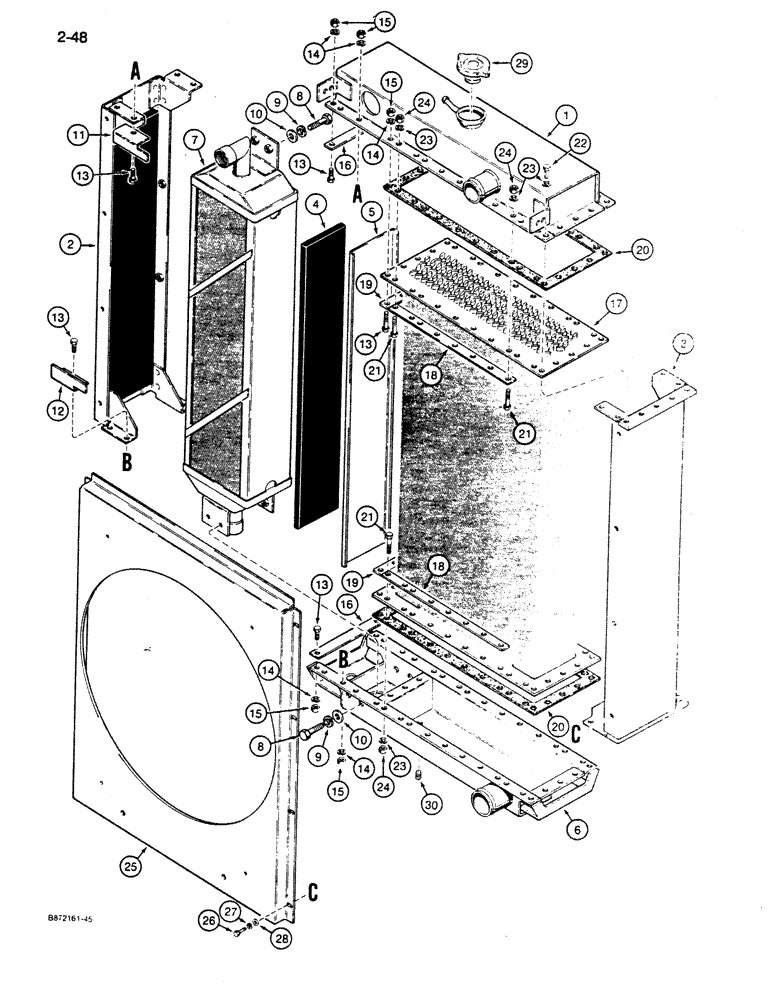

Схема запчастей Case 855D - (2-48) - RADIATOR ASSEMBLY, MODINE (02) - ENGINE
27
19
6
15
15
14
10
10
4
11
7
20
13
9
14
26
24
29
16
21
15
8
23
21
13
13
9
18
14
21
15
12
28
14
3
25
13
22
24
23
18
16
20
2
23
19
17
30
24
8
13
1
5

Артикул

Название

Примечание

Количество

R49826

RADIATOR

Modine (Ref. No. R52865)

1шт.

When ordering R49826 radiator assembly, you will receive either a Modine radiator assembly (parts list shown above) or a General Thermodynamics radiator assembly, parts list on Figure 2-46. If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N14785

COVER

top

1шт.

2

N14793

LARGE PLATE

PLATE, LARGE left-hand side, covers oil cooler tank

1шт.

3

N14788

LARGE PLATE

PLATE, LARGE right-hand side, with panel for vibration dampener

1шт.

4

N14798

NOISE PROTECTION

vibration dampner

1шт.

5

N14799

LARGE PLATE

PLATE, LARGE core reinforcement, between core and oil cooler

1шт.

6

N14786

COVER

bottom

1шт.

7

N14792

COOLER, OIL

tank

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Oil cooler mounting

6шт.

9

192-23

LOCK WASHER,1/2"

6шт.

10

195-106

WASHER,1/2"

flat, plated

6шт.

11

N14795

LARGE PLATE

PLATE, LARGE oil cooler, upper

1шт.

12

N14796

LARGE PLATE

PLATE, LARGE oil cooler, lower

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

14шт.

15

9635082

NUT,5/16" - 18, Gr 5

14шт.

16

N14797

LARGE PLATE

PLATE, LARGE reinforcement, oil cooler, upper and lower

2шт.

17

N14787

RADIATOR

1шт.

18

N14790

LARGE PLATE

PLATE, LARGE reinforcement, 13-5/8" long, core header flange, front and rear

4шт.

19

N14789

LARGE PLATE

PLATE, LARGE reinforcement, 7-1/2" long, core header flange, inner

2шт.

20

N14791

GASKET

core, upper and lower

2шт.

21

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

40шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

60шт.

24

9635082

NUT,5/16" - 18, Gr 5

40шт.

25

N14794

LARGE PLATE

PLATE, LARGE radiator

1шт.

26

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Shroud mounting

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

8шт.

28

195-102

WASHER,1/4"

flat, plated

8шт.

29

A170241

RADIATOR CAP

15 psi

1шт.

30

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

pipe, square head, 1/4" NPT, replace with elbow and drain valve shown on Figure 2-44

1шт.
