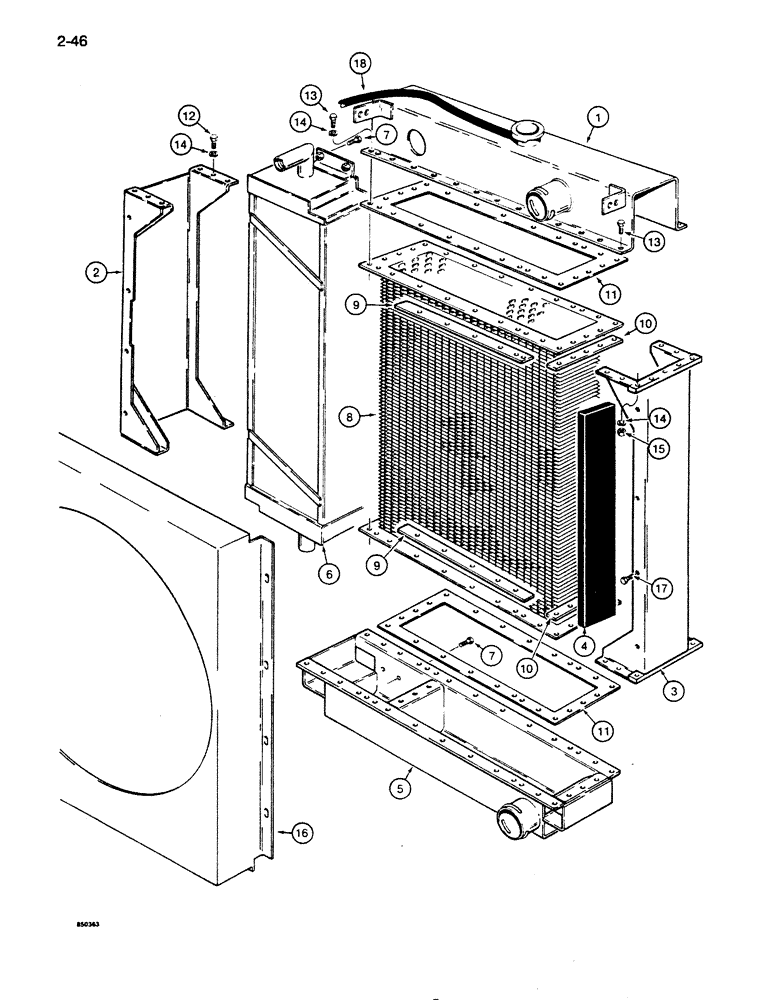

Запчасти Case 855D (2-46) - RADIATOR ASSEMBLY, GENERAL THERMODYNAMICS (02) - ENGINE

R49826

RADIATOR

see note below, General Thermodynamics (Ref. No. R52864)

1шт.

When ordering R49826 radiator assembly, you will receive either a General Thermodynamics radiator assembly (parts list shown above) or a Modine radiator assembly (parts list on Figure 2-48). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N9753

COVER

tank, top

1шт.

2

N9755

LARGE PLATE

PLATE, LARGE left hand side, covers oil cooler tank

1шт.

3

N9756

LARGE PLATE

PLATE, LARGE right hand side, with panel for vibration dampner

1шт.

4

N7887

PADDING

vibration dampner, if used, single piece as shown not available, replace with three strips of 1968072C1, see below

1шт.

5

N9754

COVER

tank, bottom

1шт.

6

N9759

RESERVOIR

oil cooler

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Oil cooler mounting

4шт.

8

N9757

RADIATOR

core

1шт.

9

N9761

LARGE PLATE

PLATE, LARGE reinforcement, core

4шт.

10

N9760

LARGE PLATE

PLATE, LARGE reinforcement, core ends, inner

2шт.

11

N9762

GASKET

core, upper and lower

2шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

59шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

72шт.

15

9635082

NUT,5/16" - 18, Gr 5

59шт.

16

N9758

LARGE PLATE

PLATE, LARGE radiator

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Shroud mounting

8шт.

18

NSS

NOT SOLD SEPARAT

HOSE, overflow, see figure 2-44 for correct overflow hose

1шт.

1968072C1

SEAL

foam, 10 mm x 25 mm x 490 mm

3шт.
