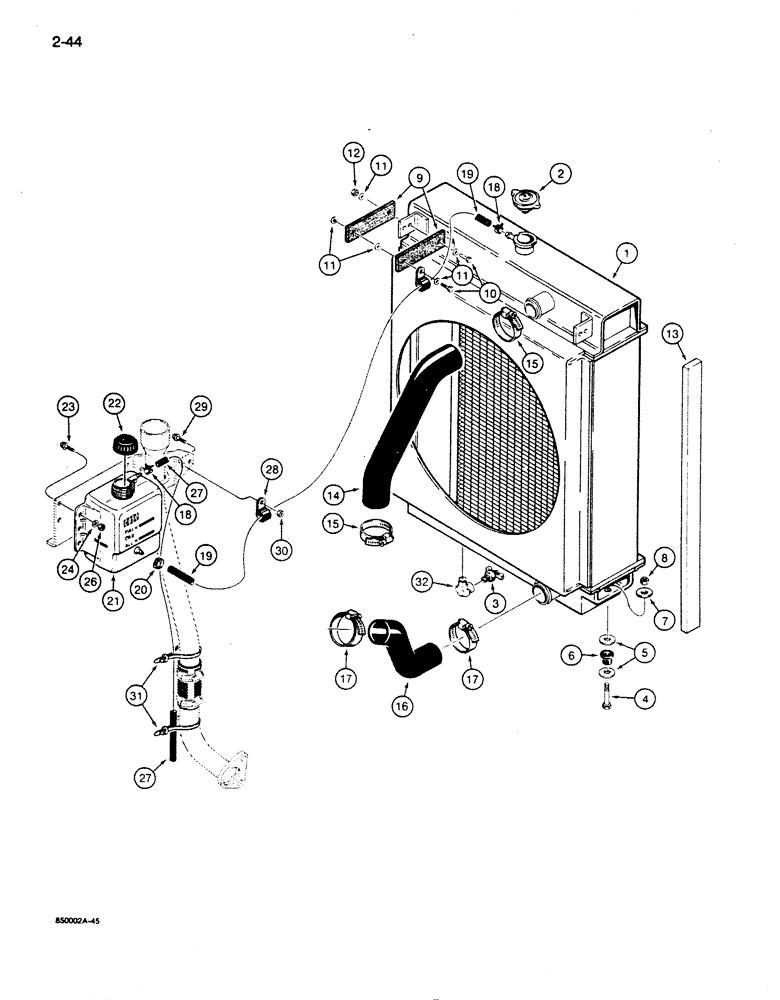

Запчасти Case 855D (2-44) - RADIATOR, HOSES, AND COOLANT RECOVERY SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - engine cooling, for correct assembly and components see Figures 2-46 and 2-48

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

radiator, 1/4" NPT

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

5

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

flat, hardened, 1/2" x 1-7/8" (48 mm) OD

4шт.

6

R29799

SHOCK ABSORBER

radiator mounting

2шт.

7

D25022

WASHER

flat, hardened, 1/2" x 1-3/4" (44 mm) OD, plated

2шт.

8

131-1116

LOCK NUT,1/2"-13, GB

2шт.

9

D73500

STRAP

radiator mounting

4шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Use with Loctite

4шт.

11

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, 3/8"

10шт.

12

131-666

LOCK NUT,3/8"-16, GB

2шт.

13

REF

INSTRUCTION

PAD - radiator baffle, 2" (51 mm) x 31-5/16" (795 mm), cut from R30870, see below

2шт.

For upper radiator baffle and pad, see Figure 9-038.

1шт.

14

R54514

RADIATOR HOSE,45.00 mm ID x 400.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

radiator, upper

1шт.

15

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

Upper radiator, adjustable

2шт.

16

R54513

RADIATOR HOSE,58.00 mm ID x 195.00 mm, SAE 20R4 Class C or SAE 20R4 D1

radiator, lower

1шт.

17

214-177

CLIP

lower radiator hose, adjustable

2шт.

18

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, coolant bottle hoses

2шт.

19

A171087

HOSE,7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

Radiator to coolant bottle, See Parts Substitution List for bulk hose options and cut to length

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adjustable, at coolant bottle

1шт.

21

L127093

RESERVOIR

1шт.

22

A184079

CAP

coolant bottle

1шт.

23

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Replaces regular hex head bolt used on some models

4шт.

24

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

4шт.

27

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Coolant Bottle Overflow

1шт.

28

49838

CLAMP

plastic coated, coolant bottle hoses

2шт.

29

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

32

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Radiator drain valve

1шт.

R30870

PAD

bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

For upper radiator baffle and pad, see Figure 9-038.

1шт.

345-44

ADHESIVE

for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
