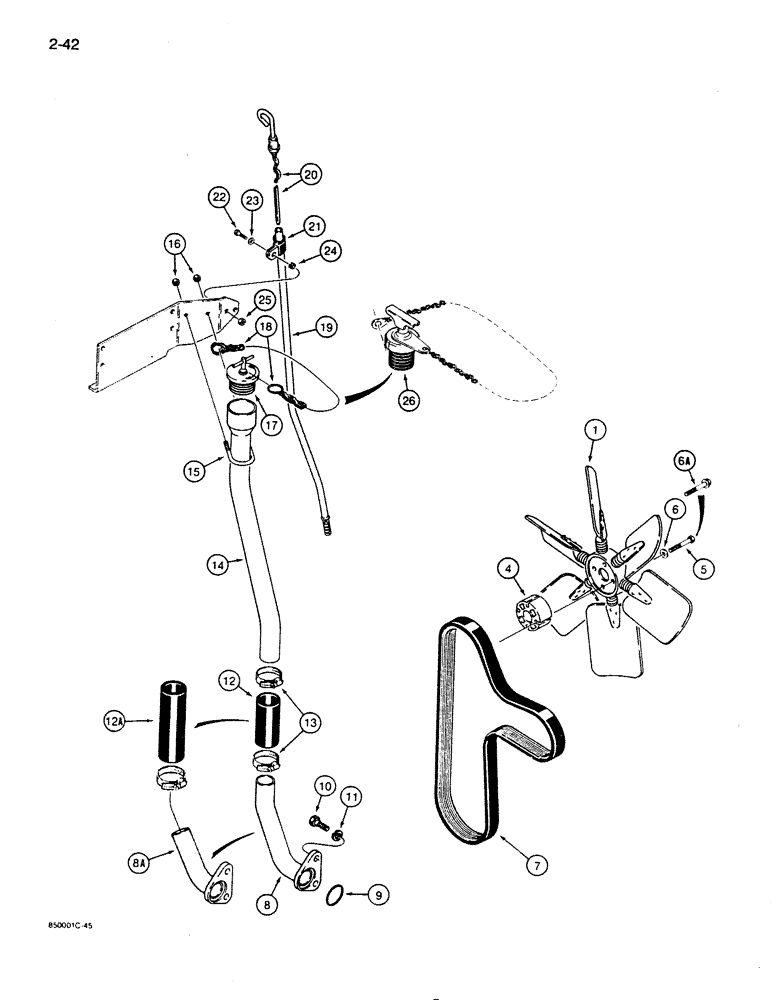

Запчасти Case 855D (2-42) - RADIATOR FAN AND BELT, ENGINE FILLER TUBE AND DIPSTICK (02) - ENGINE

1

A173564

FAN

reversible, if used

1шт.

2

A173557

FAN

pusher, if used, not shown

1шт.

3

A173559

FAN

suction, if used, not shown

1шт.

4

A184544

SPACER

fan, was A173327

1шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning see Figure 9-102.

1шт.

5

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

If used

4шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning see Figure 9-102.

1шт.

6

25709R1

WASHER

flat, hardened, 13/32" (10 mm) ID, plated, if used

4шт.

6a

853-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

If used

4шт.

These parts are used on models without air conditioning. For parts used on models with air conditioning see Figure 9-102.

1шт.

7

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

1шт.

8

R52620

TUBE

engine oil fill, lower, with two bends, no longer used, replace with R53750 tube (Ref. 8A) and R53715 hose (Ref. 12A)

1шт.

8a

R53750

TUBE,24 mm L

engine oil fill, lower, with one bend, use with Ref. 12A hose

1шт.

9

J906704

O-RING

lower engine oil fill tube

1шт.

10

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

11

892-1112

LOCK WASHER,M12

2шт.

12

R43922

HOSE

1-1/2" (38 mm) ID x 4" (102 mm) long, engine oil fill, cut from R53775 hose, see below, used with Ref. 8 tube only, if used

1шт.

12a

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Engine Oil Fill, Cut from R53775 Hose, Se Below, Used with Item 8A Tube Only, if Used

1шт.

13

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

Adjustable, engine oil fill

2шт.

14

R52622

TUBE,38.1 mm OD x 670, 100 mm L

engine oil fill, upper

1шт.

15

L73167

U-BOLT

upper engine oil fill tube to coolant recovery bottle bracket

1шт.

16

131-2

NUT,1/4"-20, GB

2шт.

17

A77424

FILLER CAP

filler tube, order L115504 cap, Ref. 26 below

1шт.

18

R50297

CHAIN (CE)

filler cap, used with A77424 cap only

1шт.

19

R47910

TUBE,0.375" OD

dipstick

1шт.

20

R47937

DIPSTICK

engine oil

1шт.

21

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

dipstick tube

1шт.

22

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Replaces flange head bolt used on some models

1шт.

23

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

1шт.

24

R39516

GROMMET

rubber, vibration dampner

1шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex, Replaces regular hex nut used on some models

1шт.

26

L115504

CAP

filler tube, if used

1шт.

R53755

LIGHT ASSY.,12V

1-1/2" (38 mm) ID x 9-1/2" (240 mm) long

1шт.
