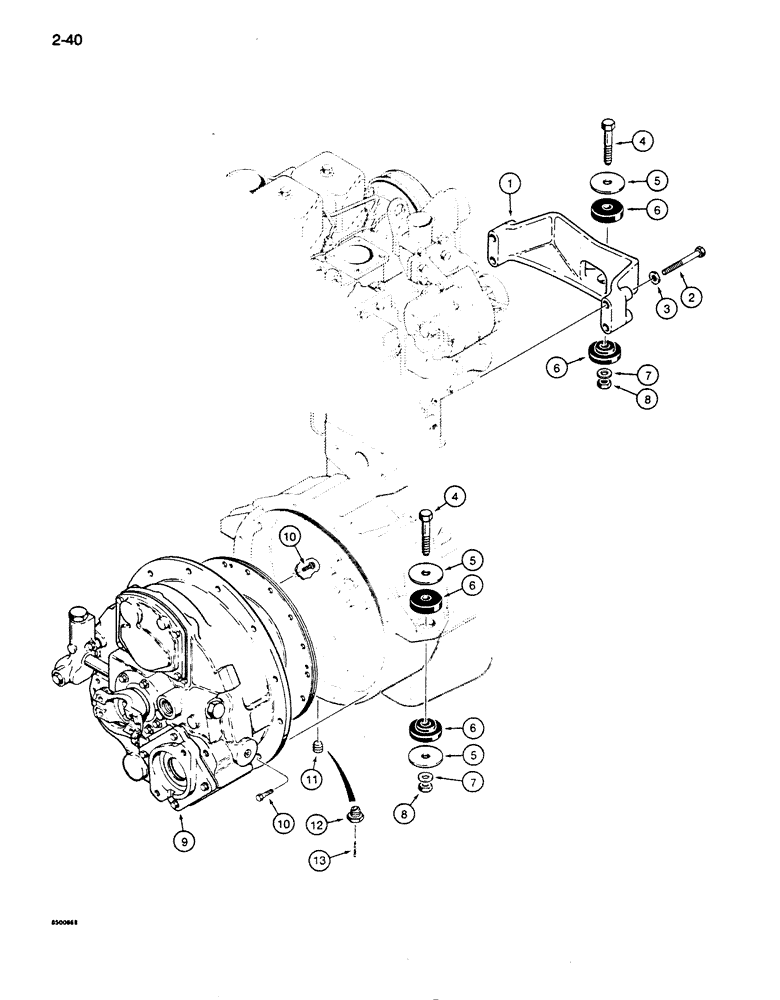

Запчасти Case 855D (2-40) - ENGINE, FLYWHEEL, AND TORQUE CONVERTER MOUNTING (02) - ENGINE

1

A170985

BRACKET

engine mounting

1шт.

2

A171690

BOLT

special, 12 mm - 1.75 x 85 mm

4шт.

3

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, hardened steel, 1/2", plated

4шт.

4

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Use with Loctite 242

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

flat, 5/8", special

5шт.

6

R49921

RUBBER MOUNTING

engine and flywheel housing mounting

6шт.

7

195-541

WASHER,5/8", SAE

3шт.

8

129-107

NUT,5/8"-11, G5

3шт.

9

REF

INSTRUCTION

TORQUE CONVERTER - for correct assembly and components, see Figures 6-02 through 6-06

1шт.

10

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

hex flange head, 10 mm - 1.5 x 35 mm (10.9), special, use with Loctite 242, torque converter flex, Serial Range: plate-flywheel

24шт.

11

221-845

PLUG,Hex Soc, 3/4"-14

housing drain, if used

1шт.

12

L113178

PLUG

hex, 3/4 inch PT, flywheel housing, if used

1шт.

13

132-118

COTTER PIN,7/32" x 1"

If used

1шт.
