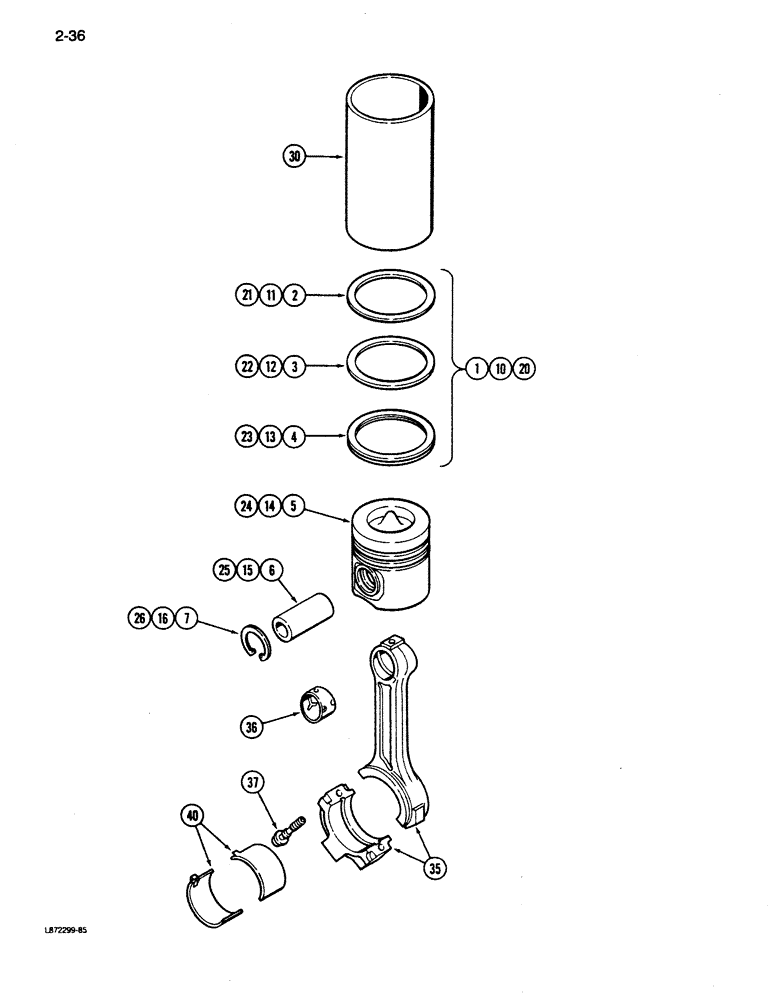

Запчасти Case 855D (2-36) - PISTONS, 6T-590 ENGINE (TURBOCHARGED) (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT - engine (Standard) (Replaces A77419), Includes: Ref. 1 - 7

6шт.

1

A77727

PISTON RING SET

KIT - piston (Standard) (Replaces A77500), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Standard) (Stamped 7163)

1шт.

6

J901793

PISTON PIN

1шт.

7

J901706

RING

retainer, pin

2шт.

A77731

PISTON & RINGS KIT

KIT - engine (0.5 mm oversize) (Replaces A77638), Includes: Ref. 10 - 16

6шт.

10

A77728

PISTON RING SET

KIT - piston (0.5 mm oversize) (Replaces A77501), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder (0.5 mm oversize) (Stamped 8815)

1шт.

15

J901793

PISTON PIN

1шт.

16

J901706

RING

retainer, pin

2шт.

A77732

PISTON

KIT - engine (1.0 mm oversize) (Replaces A77637), Includes: Ref. 20 - 26

6шт.

20

A77729

PISTON RING SET

KIT - piston (1.0 mm oversize) (Replaces A77502), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1.0 mm oversize) (Stamped 8816)

1шт.

25

J901793

PISTON PIN

1шт.

26

J901706

RING

retainer, pin

2шт.

30

J904166

SLEEVE

piston (Used only in engine block repair) (When liner is installed, use only A77730 piston kit)

1шт.

35

J901569

ROD, CONNECTING

new

6шт.

35

JR901569

ROD

connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod use this part number to return connecting rod for credit

6шт.

35

84145405R

REMAN-CONNECTING ROD

850D, 855D, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569), connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex special, 11 mm - 1 x 26 mm, connecting rod

2шт.

40

A77465

BEARING SET

KIT - upper and lower (Standard)

6шт.

40

A77466

BEARING SET

KIT - upper and lower, (0.25 mm undersize)

6шт.

40

A77467

BEARING LINER

KIT - upper and lower, (0.5 mm undersize)

6шт.

40

A77468

BEARING SET

KIT - upper and lower, (0.75 mmundersize)

6шт.

40

A77469

BEARING SET

KIT - upper and lower, (1.0 mmundersize)

6шт.
