Запчасти Case 855D (2-34) - PISTONS, 6-590 ENGINE (NATURAL ASPIRATED) (02) - ENGINE

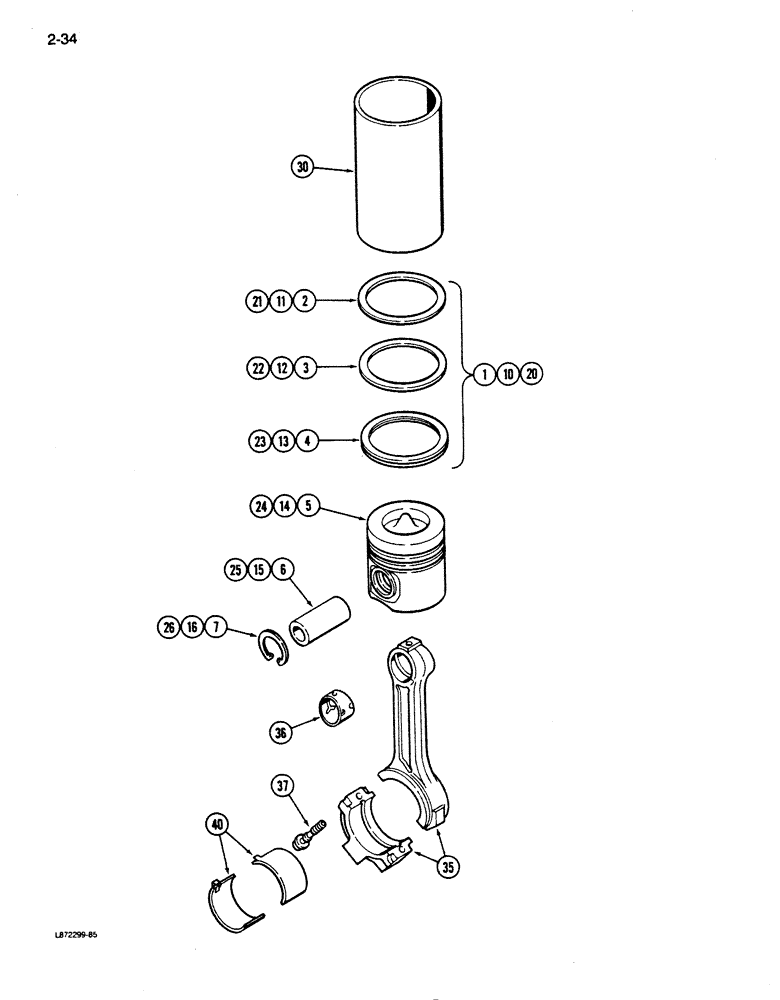

Схема запчастей Case 855D - (2-34) - PISTONS, 6-590 ENGINE (NATURAL ASPIRATED) (02) - ENGINE
20
4
26
7
2
16
21
5
35
40
24
10
11
30
1
3
25
37
12
36
23
15
22
6
14
13

Артикул

Название

Примечание

Количество

A77410

PISTON

KIT - engine (Standard), Includes: Ref. 1 - 7

6шт.

1

A77401

PISTON RING SET

(Standard), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Standard) (Stamped 6223)

1шт.

6

J901793

PISTON PIN

1шт.

7

J901706

RING

retainer, pin

2шт.

A77411

PISTON

KIT - engine (0.5 mm oversize), Includes: Ref. 10 - 16

6шт.

10

A77463

PISTON RING SET

engine (0.5 mm oversize), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder (0.5 mm oversize) (Stamped 6209)

1шт.

15

J901793

PISTON PIN

1шт.

16

J901706

RING

retainer, pin

2шт.

A77412

PISTON

KIT - engine (1.0 mm oversize), Includes: Ref. 20 - 26

6шт.

20

A77464

PISTON RING SET

engine (1.0 mm oversize), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1.0 mm oversize) (Stamped 6208)

1шт.

25

J901793

PISTON PIN

1шт.

26

J901706

RING

retainer, pin

2шт.

30

J904166

SLEEVE

piston (Used only in engine block repair) (When liner is installed, use only A77410 piston kit)

1шт.

35

J901569

ROD, CONNECTING

connecting, new

6шт.

35

JR901569

ROD

connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod use this part number to return connecting rod for credit

6шт.

35

84145405R

REMAN-CONNECTING ROD

850D, 855D, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569), connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex special, 11 mm - 1 x 26 mm, connecting rod

2шт.

40

A77465

BEARING SET

KIT - connecting rod (set, upper and lower (Standard)

6шт.

40

A77466

BEARING SET

KIT - connecting rod set, upper and lower, (0.25 mm undersize)

6шт.

40

A77467

BEARING LINER

KIT - connecting rod set, upper and lower, (0.5 mmundersize)

6шт.

40

A77468

BEARING SET

KIT - connecting rod set, upper and lower, (0.75 mm undersize)

6шт.

40

A77469

BEARING SET

KIT - connecting rod set, upper and lower, (1.0 mm undersize)

6шт.

A77410/411/412 are short pin piston kits, (stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits (stamped 1880, 1882, 1881 on piston) - do not mix - 11/98 - tba/ tsg.

1шт.
