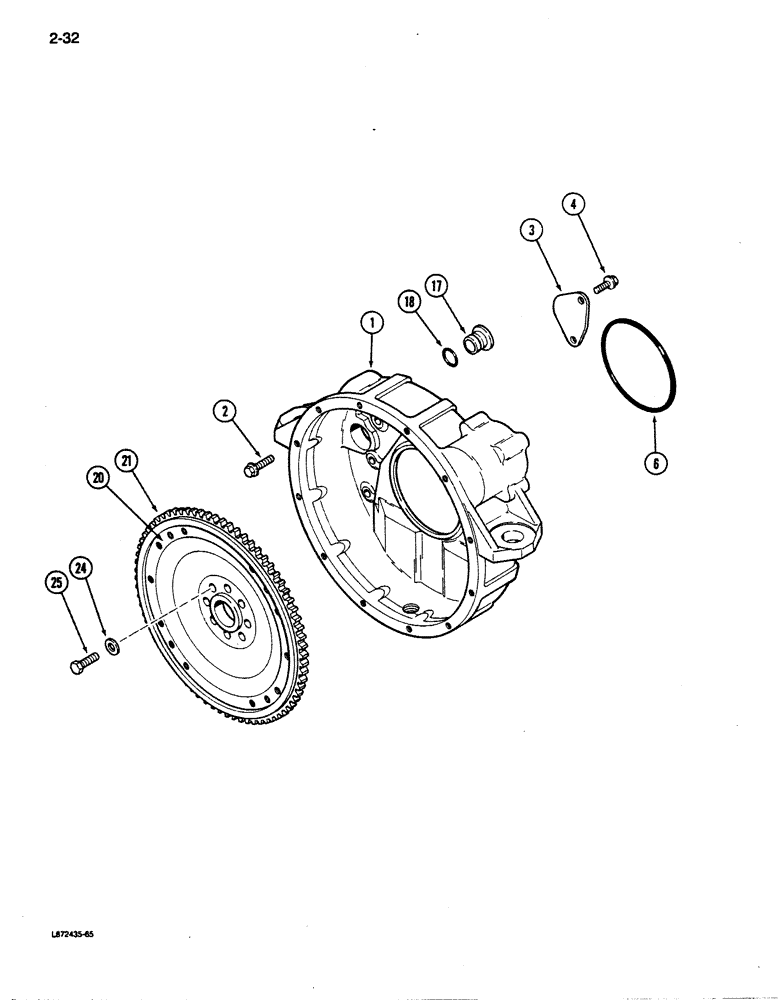

Запчасти Case 855D (2-32) - FLYWHEEL AND HOUSING, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J903287

CASE

flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J908095

PLATE

cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

hex, plate retaining

2шт.

5

A77531

CLIP

retaining (If Equipped)

1шт.

6

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING, Serial Range: housing-block

1шт.

17

J910248

PLUG

housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1)

1шт.

20

J908832

FLYWHEEL WITH GEAR

crankshaft, Includes: Ref. 21

1шт.

21

J905427

GEAR

ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.
