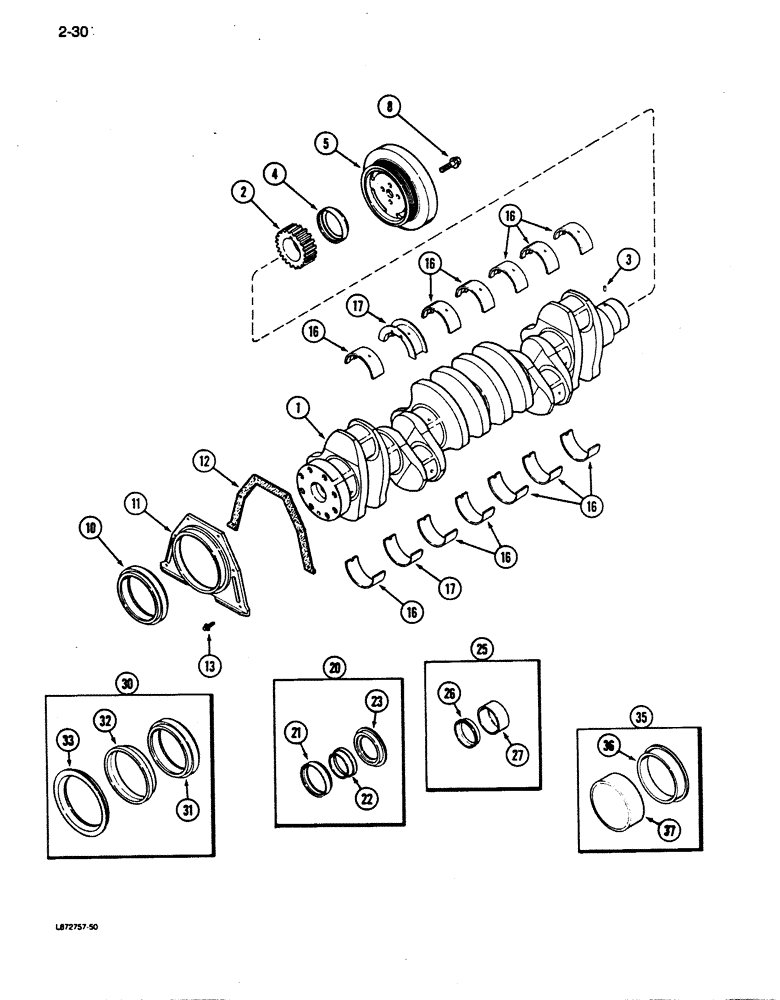

Запчасти Case 855D (2-30) - CRANKSHAFT, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

JR918324

CRANKCASE

engine (Remanufactured) (North America only)

1шт.

JC918324

CRANK

(Use this number to return crankshaft core for credit)

1шт.

1

J918324

CRANKSHAFT

engine (Replaces J908032), Includes: Ref. 2 & 3

1шт.

2

J919681

PINION

crankshaft (Replaces J901258)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 20)

1шт.

5

J958258

DAMPER

crankshaft (Replaces J911422)

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange head, 12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref 30)

1шт.

11

J913447

SEAL RETAINER

rear (Replaces J906526)

1шт.

12

J914386

GASKET

seal retainer (Replaces J901019)

1шт.

13

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

16

A77405

CRANKSHAFT BEARING

KIT -upper and lower, standard

6шт.

16

A77472

BEARING SET

KIT - upper and lower, 0.25 mm undersize

6шт.

16

A77474

BEARING SET

KIT -upper and lower, 0.50 mm undersize

6шт.

16

A77476

BEARING SET

KIT - upper and lower, 0.75 mm undersize

6шт.

16

A77478

BEARING SET

KIT, 1.0 mm undersize

6шт.

17

A77406

CRANKSHAFT BEARING

KIT - , standard

1шт.

17

A77473

THRUST BEARING

KIT - upper and lower, (0.25 mm undersize)

1шт.

17

A77475

THRUST BEARING

KIT - upper and lower, (0.5 mm undersize)

1шт.

17

A77477

THRUST BEARING

KIT - upper and lower, (0.75 mm undersize)

1шт.

17

A77479

THRUST BEARING

KIT - upper and lower, (1.0 mm undersize)

1шт.

20

J904353

GASKET KIT

oil, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

crankshaft front

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

oil, crankshaft rear

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

KIT - crankshaft rear

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
