(2-24) - CYLINDER BLOCK, 6-590 ENGINE, ENGINE SERIAL NO. 44511034 AND AFTER

Запчасти Case 855D (2-24) - CYLINDER BLOCK, 6-590 ENGINE, ENGINE SERIAL NO. 44511034 AND AFTER (02) - ENGINE

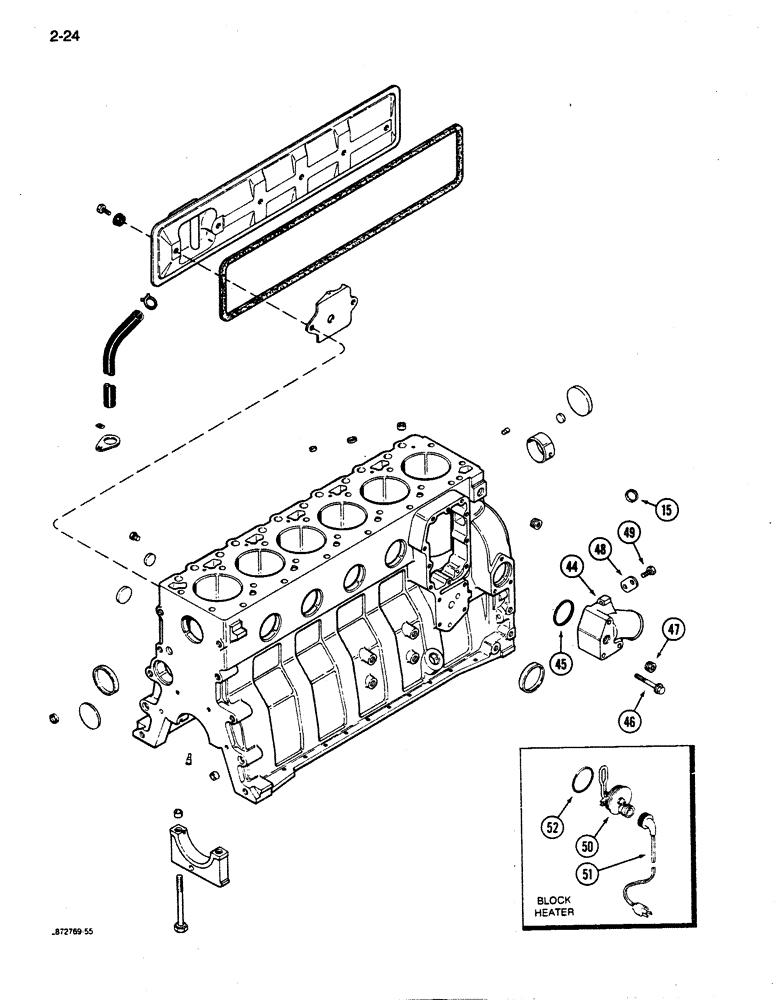

Схема запчастей Case 855D - (2-24) - CYLINDER BLOCK, 6-590 ENGINE, ENGINE SERIAL NO. 44511034 AND AFTER (02) - ENGINE
50
15
45
49
44
52
48
46
47
51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1989095C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989095C3C

CORE-BASIC ENGINE

Return Number

1шт.

44

J903103

MANIFOLD

water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

47

A77429

PLUG

hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

alternator mounting (If Equipped)

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

A77634

KIT

HEATER - engine block

1шт.

50

J916127

RESISTOR

HEATER - engine block

1шт.

51

J905113

CABLE

engine block heater

1шт.

52

J910517

O-RING

heater sealing, block

1шт.
