(2-21[C]) - CYLINDER BLOCK, 6-590 ENGINE, PRIOR TO ENGINE SERIAL NO.44511034

Запчасти Case 855D (2-21[C]) - CYLINDER BLOCK, 6-590 ENGINE, PRIOR TO ENGINE SERIAL NO.44511034 (02) - ENGINE

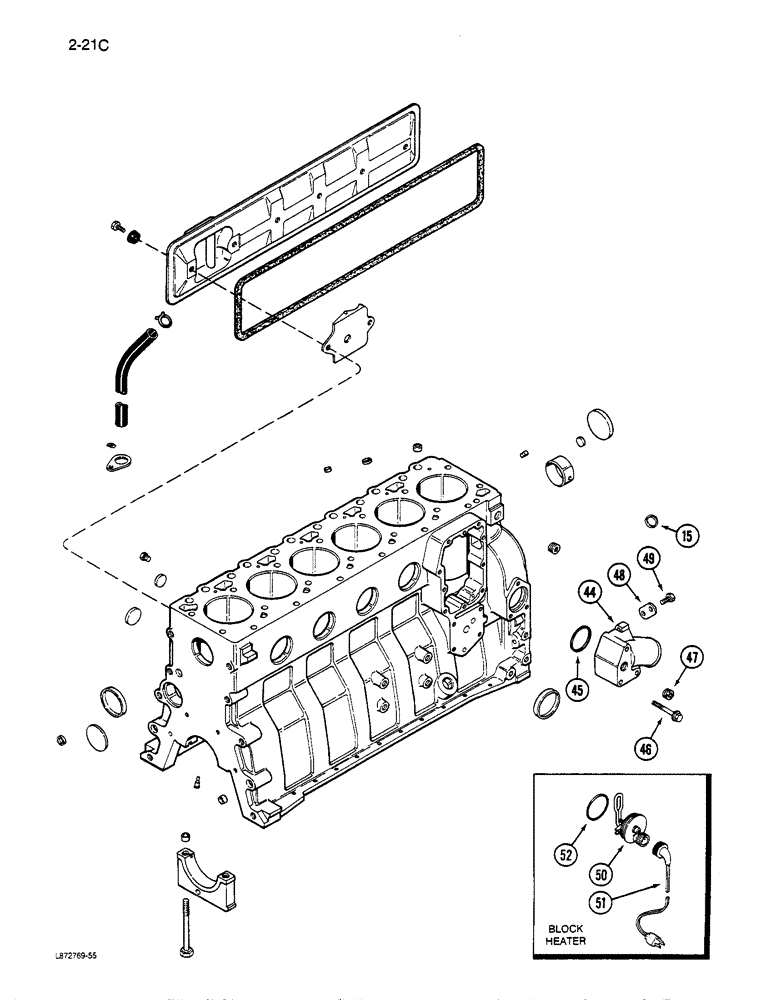

Схема запчастей Case 855D - (2-21[C]) - CYLINDER BLOCK, 6-590 ENGINE, PRIOR TO ENGINE SERIAL NO.44511034 (02) - ENGINE
45
48
44
47
15
49
50
51
46
52
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

44

J903103

MANIFOLD

water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

47

A77429

PLUG

hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

alternator mounting (If Equipped)

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

A77634

KIT

HEATER - engine block

1шт.

50

J916127

RESISTOR

HEATER - engine block

1шт.

51

J905113

CABLE

engine block heater

1шт.

52

J910517

O-RING

heater, sealing

1шт.
