Запчасти Case 855D (2-21[A]) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED), PRIOR TO ENGINE SERIAL NO. 44511034 (02) - ENGINE

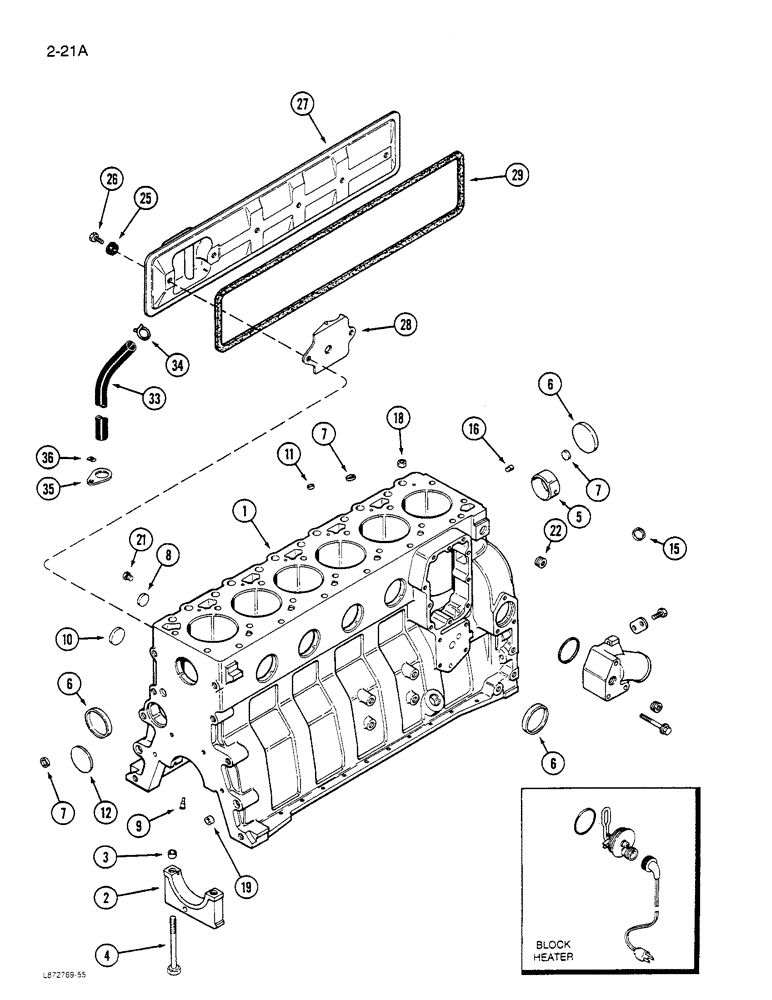

Схема запчастей Case 855D - (2-21[A]) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED), PRIOR TO ENGINE SERIAL NO. 44511034 (02) - ENGINE
7
19
15
35
21
6
7
7
33
12
11
3
26
6
10
4
18
2
5
6
9
25
29
27
34
8
16
36
1
22
28

Артикул

Название

Примечание

Количество

1989049C1

ENGINE

complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989049C1. USE BASIC ENG. FOR SEVICE.

1шт.

1989131C1R

REMAN-REPLACEMENT EN

complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

6-590C

CORE-REPLACEMENT ENG

Return Number

1шт.

1989095C1

BASIC ENGINE

1шт.

ENGINE ASSEMBLY - basic (Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

JR905811

ENGINE, EXCHANGE

ENGINE (EXCHANGE) short, remanufactured (North America only)

1шт.

JR905811 does not include camshaft or tappets.

1шт.

JC905811

CORE-ENGINE

(Use this part number to return block core for credit

1шт.

J905811

SKELETON ENGINE

short, (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J905813 kit)

1шт.

1

J905810

CRANKCASE

Stripped engine (Order block and J905813 kit, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

main

7шт.

3

J900068

BEARING WASHER

dowel, 18mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-34)

1шт.

6

J900965

PLUG

expansion, 58 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

A77539

PLUG

expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

piston cooling

6шт.

10

J900958

PLUG

expansion, 32 mm OD

1шт.

11

J900955

PLUG

expansion, 10 mm OD

2шт.

12

J900687

PLUG

expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING, 16 mm )D

2шт.

19

J900068

BEARING WASHER

dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

hex socket pipe, 1/2-14 PT

1шт.

25

J900267

SEAL

cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

27

J911822

COVER

tappet

1шт.

28

J907586

BAFFLE

tappet cover

1шт.

29

J907617

GASKET

tappet cover (Replaces J904776)

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

spring hose

1шт.

35

J905479

SPRING NUT

CLIP - retaining

1шт.

36

J905479

SPRING NUT

spring, hose clip (If Equipped)

1шт.

Выбрано товаров: 38
