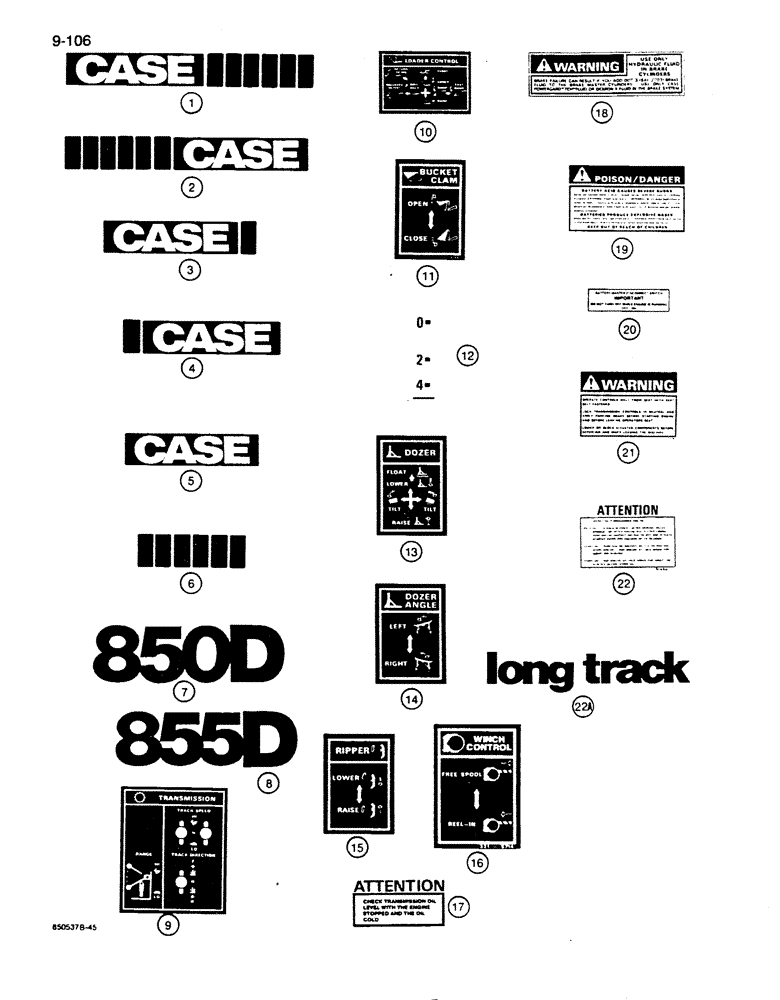

Запчасти Case 855D (9-106[A]) - DECALS (09) - CHASSIS/ATTACHMENTS

R50286

DECAL

Kit, Includes: Ref. 1 - 22A & Ref. 23 - 32 on Figure 9-108

1шт.

1

R48496

DECAL

Case, left-hand, 6" (152 mm), dozer and drawbar models, if used

1шт.

2

R48495

DECAL

Case, right-hand, 6" (152 mm), dozer and drawbar models, if used

1шт.

3

R48497

DECAL

Case, left-hand, 5" (127 mm) loader models, if used

1шт.

4

R48498

DECAL

Case, right-hand, 5" (127 mm), loader models, if used

1шт.

5

R48489

DECAL

Case, rear of seat and tank frame, 6" (152 mm), if used

1шт.

5

R48422

DECAL - Case, rear of seat and tank frame, 8" (203 mm), if used

1шт.

REF#5---R48422----PART WAS NEVER SETUP IN BILL OF MATERIALS AND/OR GPN. NOT SUPPLIED.

1шт.

6

R48487

DECAL

treadmarks, 6" (152 mm), used with Ref. 5

2шт.

7

R49238

DECAL

850D, dozer and drawbar models, if used

2шт.

8

R49239

DECAL

855D, loader models, if used

2шт.

9

R56877

DECAL

Transmission, shift pattern

1шт.

10

321-4396

DECAL

Loader Control pattern

1шт.

11

321-4184

DECAL

Bucket Clam control pattern

1шт.

12

321-1706

DECAL

0- 2- 4-, clam bucket position indicator

1шт.

13

321-4181

DECAL

Dozer control pattern

1шт.

14

321-4182

DECAL

Dozer Angle control pattern

1шт.

15

321-4185

DECAL

Ripper control pattern

1шт.

16

321-5714

DECAL

Winch control

1шт.

17

R50495

DECAL

Attention, Check transmission oil level with the engine stopped

2шт.

18

321-6708

DECAL

Warning, use only hydraulic fluid in brake cylinders

1шт.

19

321-2996

DECAL

Poison/Danger, battery acid, no longer used, replace with 321- 6714, Ref. 29 on Figure 9-108

2шт.

20

R55652

DECAL

Master Disconnect

1шт.

21

321-4188

DECAL

Warning, operate controls only from seat

1шт.

22

R51636

DECAL

Attention, Operating Turbocharged Engine

1шт.

22a

R56135

DECAL

long track, on sides of fuel and hydraulic tanks, used on 60" gauge long track dozer models only

2шт.
