Запчасти Case 855D (2-20) - CAMSHAFT, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

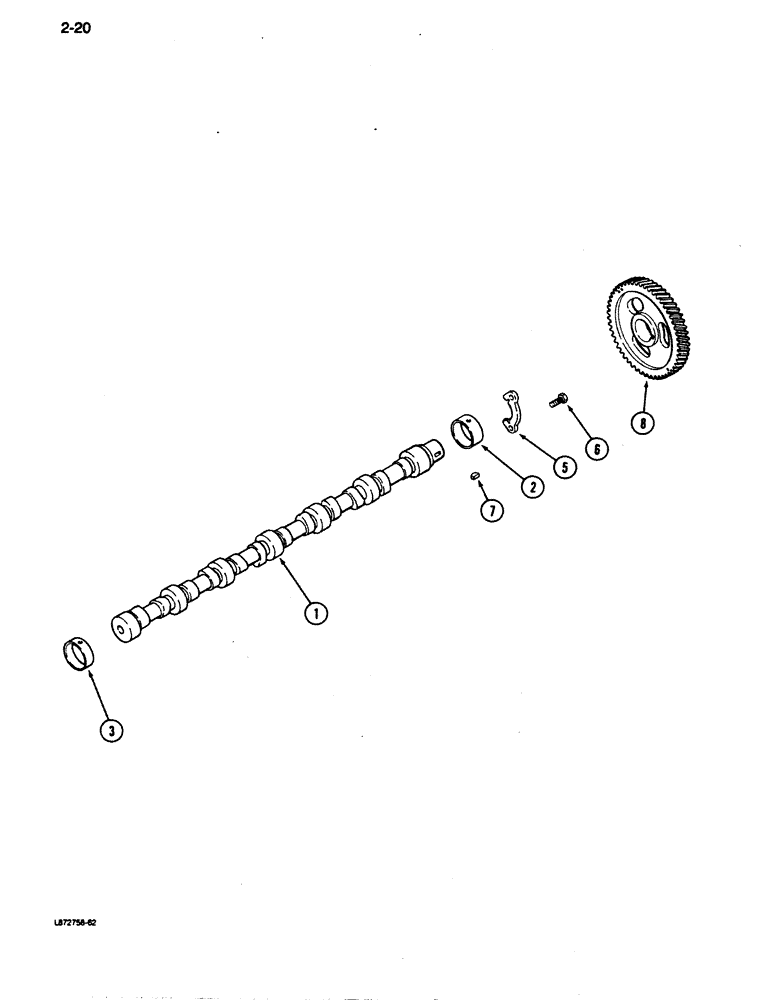

Схема запчастей Case 855D - (2-20) - CAMSHAFT, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE
1
8
7
5
2
6
3

Артикул

Название

Примечание

Количество

1

J914639

CAMSHAFT

CAMSHAFT - engine (Replaces J907824)

1шт.

2

J901306

BUSHING

BUSHING - camshaft, front, standard

1шт.

2

J904369

BUSHING

BUSHING - camshaft front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

BUSHING - camshaft, intermediate and rear (See Note)

6шт.

5

J914641

SUPPORT

SUPPORT - thrust, camshaft (Replaces J901761)

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

SCREW, Hex, M8 x 1.25 x 22

2шт.

7

J902332

KEY

KEY - camshaft gear

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.

Выбрано товаров: 8
