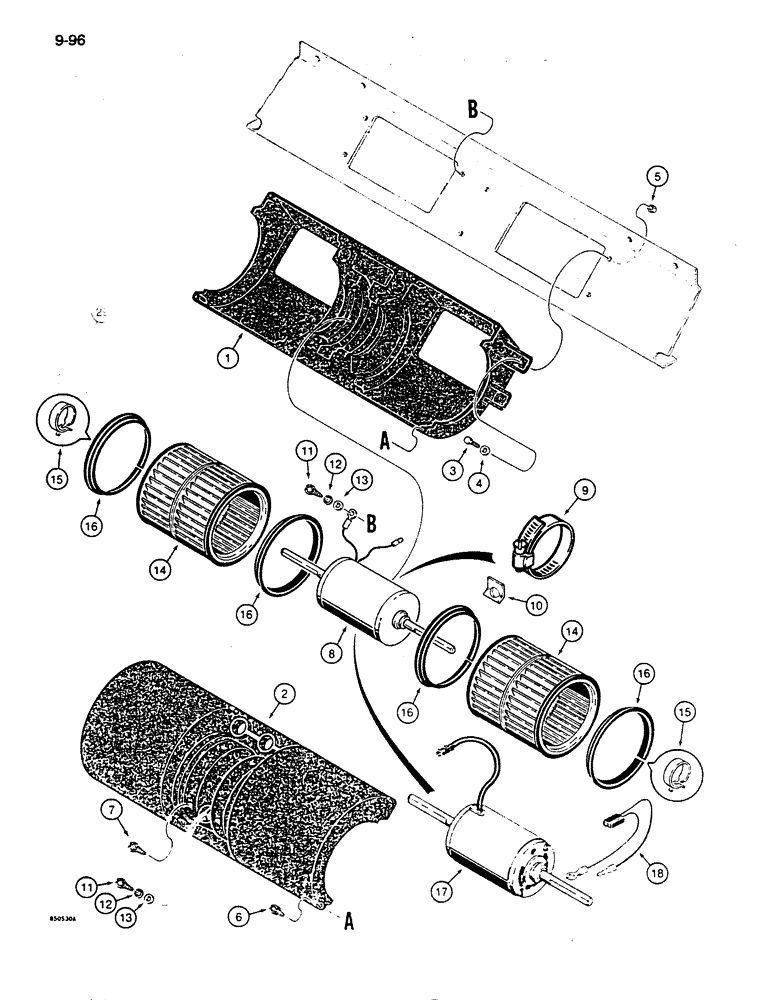

Запчасти Case 855D (9-096) - AIR CONDITIONING CONDENSER BLOWER, (ABOVE CAB ROOF) (09) - CHASSIS/ATTACHMENTS

1

F64740

HOUSING

fans, lower

2шт.

2

F64741

HOUSING

fans, upper

2шт.

3

163-13

SCREW,Hex, #10 - 24 x 3/4"

hex head, No. 10 - 24 NC x 3/4", plated

8шт.

4

195-513

WASHER,#10

flat, No. 10, plated

8шт.

5

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

8шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

self-tapping, No. 8 - 16 x 3/4", plated, fan housings, outer ends

16шт.

7

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

self-tapping, No. 8 - 16 x 1", plated, fan housings, center

8шт.

8

F96902

MOTOR, ELECTRIC

blower, 24 volt, with bullet type connectors, order A187600 motor and A187699 wire, ref 17 and 18 below

2шт.

9

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

around motor

2шт.

10

R51563

CLIP,ELECTRICAL

clamp and motor retaining

2шт.

11

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, slotted hex washer head, No. 10 - 16 x 1/2", plated

6шт.

12

193-6

LOCK WASHER,Ext Tooth, #10

6шт.

13

195-513

WASHER,#10

flat, No. 10, plated

6шт.

14

F64935

BLOWER,Fan

condenser blower

4шт.

15

F64936

CLAMP

steel spring, fan retaining

4шт.

16

F64739

RING

plastic, fan retaining

8шт.

17

A187600

MOTOR, ELECTRIC

blower, 24 volt, with molded terminal

2шт.

18

A187699

HARNESS

adapter, if used

2шт.
