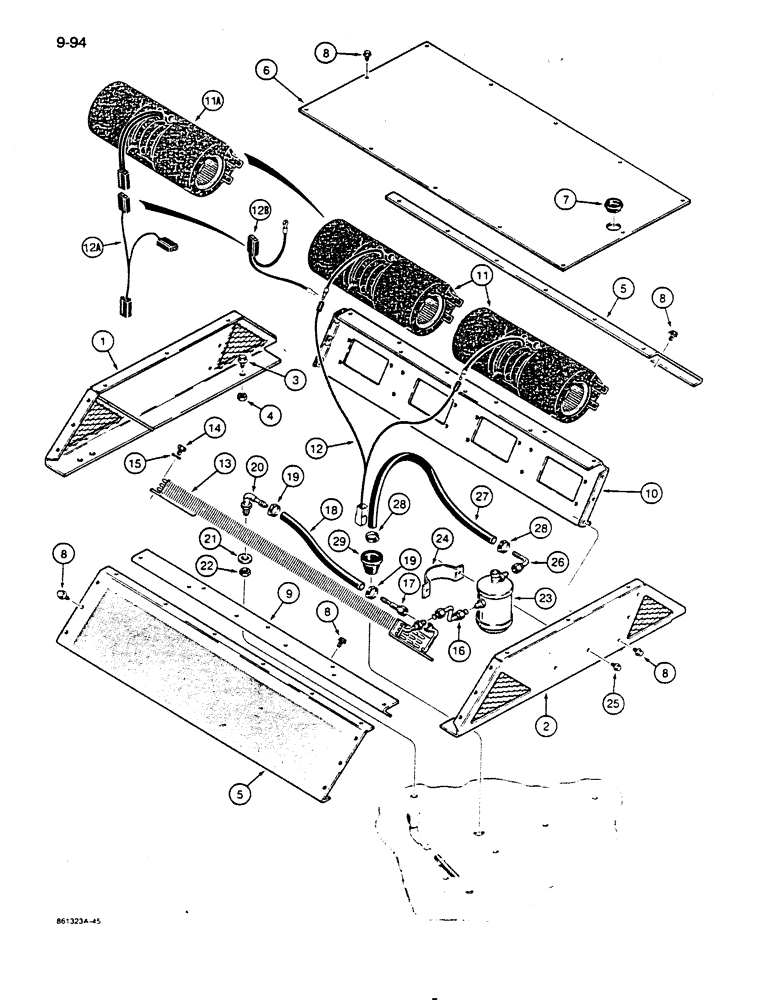

Запчасти Case 855D (9-094) - AIR CONDITIONING SYSTEM, COVERS AND MOUNTING - ABOVE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

R48827

PANEL, SIDE

with screens, left-hand side

1шт.

2

R49731

PANEL, SIDE

SPARE PART with screens, right-hand side

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

4

131-70

NUT,1/2"-13, GB

hex, self-locking, 1/2" - 13 NC, plated

4шт.

5

R48829

SIEVE

perforated, front and rear

2шт.

6

R48832

COVER

air conditioning system

1шт.

7

353-588

PLUG,1 3/4"

plastic, 1-3/4" hole size, access to receiver-drier sight gauge

1шт.

8

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

44шт.

9

R48831

SUPPORT

rear shield mounting

1шт.

10

R49055

SUPPORT

blower mounting

1шт.

11

REF

INSTRUCTION

BLOWER ASSEMBLY - air conditioning condenser, with bullet type conector on F96902 blower motor, if used, parts list Figure 9-096

2шт.

11a

REF

INSTRUCTION

BLOWER ASSEMBLY - air conditioning condenser, with molded terminal on A187600 blower motor, if used, parts list Figure 9-096

1шт.

12

R48838

ELECTRICAL WIRE

WIRE blower motors to cab harness, with bullet type connectors for F96902 blower motors, if used

1шт.

12a

A187768

HARNESS

blower motors to cab harness, with molded terminals for A187600 blower motors, if used

1шт.

For the main cab wiring harness, see Figure 4-30.

1шт.

12b

A187699

HARNESS

adapter, to adapt Ref. 11A blower motor with molded wire terminal to Ref. 12 wire with bullet type connectors, if used

1шт.

13

R49733

CONDENSER

air conditioning

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

16

R44512

TUBE,0.375" OD x 3.15, 2.62" L

condenser to receiver-drier

1шт.

17

R45089

FITTING

special

1шт.

18

R49385

A/C HOSE,10.32 mm ID x 325.00 mm, SAE J51 Type A

To condenser, Cut from S118832 bulk hose, See below

1шт.

19

A65795

COLLAR CLAMP

hose

2шт.

R45090

ELBOW

at cab roof, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BARB FITTING - elbow

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - roof seal

1шт.

22

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 3/4" - 16 NF, plated

1шт.

23

R48825

EVAPORATOR

air conditioning

1шт.

24

R49734

MOUNTING CLIP

receiver-drier

1шт.

25

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

R45091

ELBOW

BARB

1шт.

27

R48821

A/C HOSE,10.32 mm ID x 390.00 mm, SAE J51 Type A

From receiver-drier, Cut from S118832 bulk hose, See below

1шт.

28

A65795

COLLAR CLAMP

hose

2шт.

29

R48826

GROMMET

hose and blower wire through roof, cut 9/16" (14 mm) (at third ring) from the end

1шт.

S118832

HOSE,0.41" ID

1шт.
