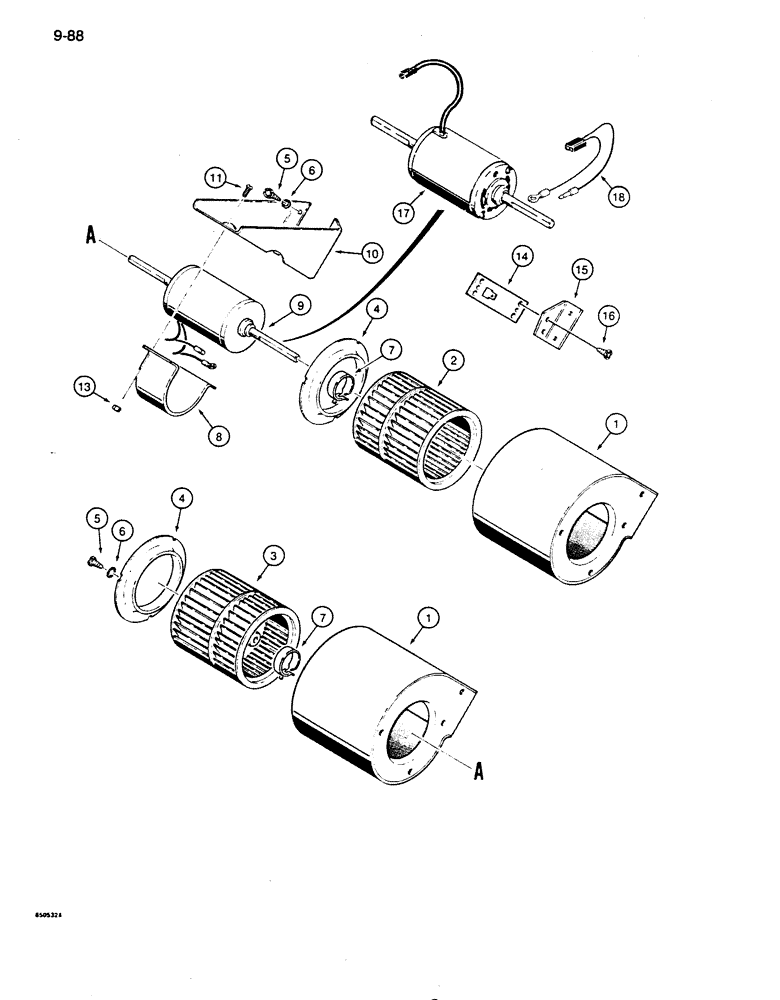

Запчасти Case 855D (9-088) - CAB BLOWER, (INSIDE CAB ROOF) (09) - CHASSIS/ATTACHMENTS
8
13
4
1
4
9
14
7
11
18
1
7
3
10
16
6
15
5
6
17
2
5
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
5
187-1088
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
self-tapping, No. 10 - 16 NC x 1/2", plated
17шт.
9
F96902
MOTOR, ELECTRIC
blower, 24 volt, with bullet type connector, order A187600 motor and A187699 wire, ref 17 and 18 below
1шт.
11
182-541
SCREW,Cross Pan Hd, #10-24 x 3/4"
pan Phillips head, No. 10 - 24 NC x 3/4", plated
4шт.
16
187-1088
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
self-tapping, No. 10 - 16 NC x 1/2", plated
4шт.
