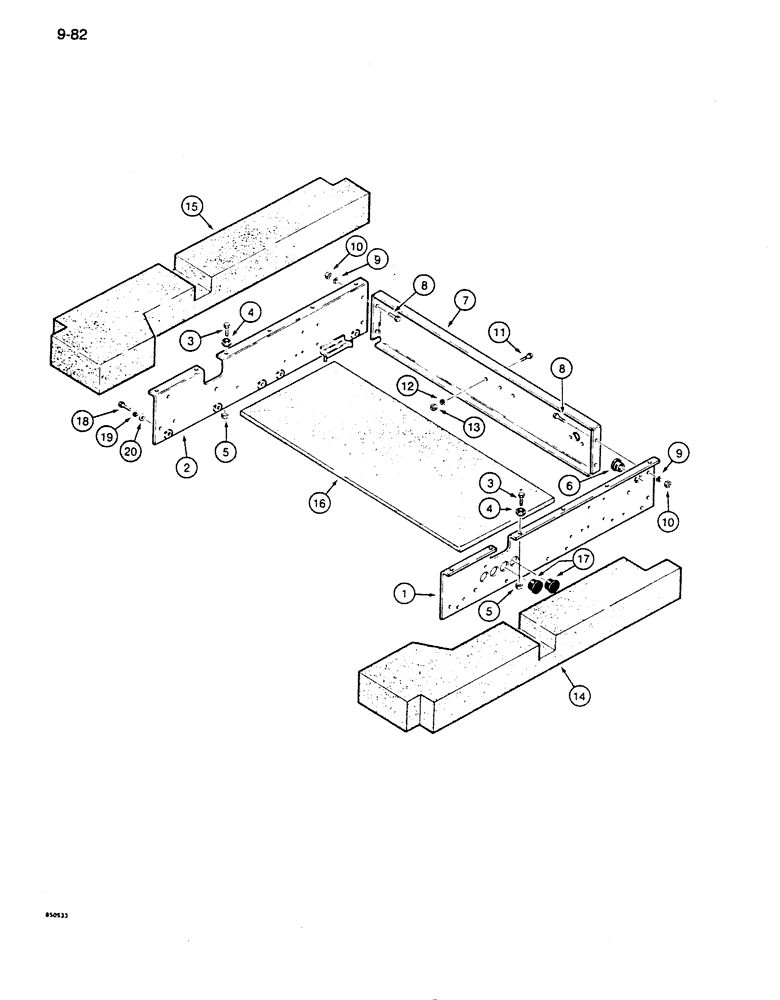

Запчасти Case 855D (9-082) - CAB, ROOF PADS AND ACCESSORY MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

R47834

PANEL

mounting, right-hand

1шт.

2

R47836

PANEL

mounting, left-hand

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

4

F42778

WASHER

special

12шт.

5

231-1445

NUT,5/16"-18, GB

12шт.

6

F64486

GROMMET

1" (25 mm) diameter hole, for front wiper harness

1шт.

7

R44077

D PANEL

windshield wiper mounting, front

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

14

R51268

NOISE PROTECTION

PAD - vinyl covered, right-hand

1шт.

15

R51267

NOISE PROTECTION

PAD - vinyl covered, left-hand

1шт.

16

R44171

NOISE PROTECTION

PAD - foam, heat barrier, attaches to cab roof above heater and/or air conditioning cores

1шт.

17

353-415

PLUG,Dome, 1.500" hole, Nylon

Used on models without air conditioning, if used

2шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

10шт.

20

195-518

WASHER,1/4", SAE

10шт.

345-44

ADHESIVE

for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
