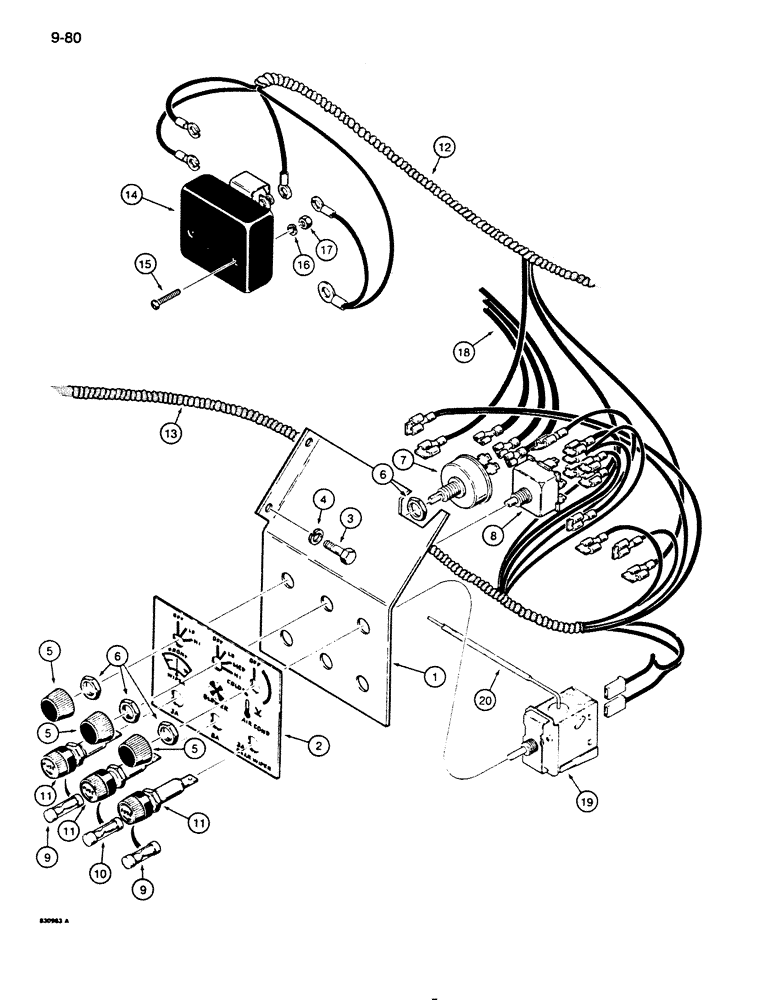

Запчасти Case 855D (9-080) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS

1

R44118

BRACKET

control panel

1шт.

2

321-5854

LARGE PLATE

PLATE, LARGE control panel

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

5

A42578

KNOB

controls

3шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

knob retaining

4шт.

7

F43359

SWITCH

windshield wipers

1шт.

8

A42622

SWITCH

blower

1шт.

9

223-38

FUSE,3 Amp, Type 3AG

front and rear windshield wipers, 3 amperes, 3AG3

2шт.

10

223-35

FUSE,8 Amp, Type 3AG

blower, 8 amperes, 3AG8

1шт.

11

376852R91

HOUSING

fuse

3шт.

12

R51358

HARNESS

main wiring, cab, for connection to cab flood lamps see Figure 4-30

1шт.

13

R44264

HARNESS

control panel to cab accessories

1шт.

14

R44286

RELAY

cab, electrical accessories

1шт.

15

182-549

SCREW,Slotted Pan Hd, #8-32 x 3/4"

pan head slotted, No. 8 - 32 NC x 3/4", plated

2шт.

16

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

2шт.

17

129-16

NUT,#8-32

2шт.

18

F64530

ELECTRICAL WIRE

WIRE windshield wiper switch to front windshield wiper

1шт.

19

L73646

SWITCH

air conditioning

1шт.

20

F63719

TUBE

cover, switch connector

1шт.
