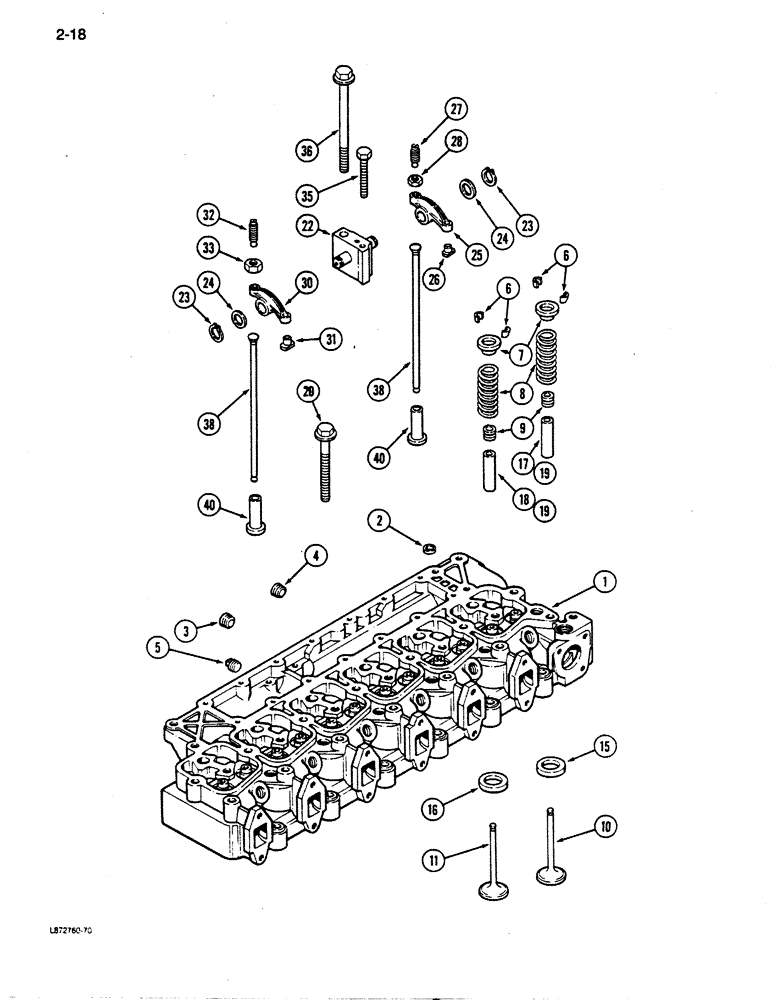

Запчасти Case 855D (2-18) - CYLINDER HEAD AND VALVE MECHANISM, 6-590 ENGINE, 6T-590 (02) - ENGINE

JR920612

HEAD (CYLINDER)

(Remanufactured)(North America Only)

1шт.

JC920612

REMAN-CYLINDER HEAD

Use this part number to return cylinder head core for credit

1шт.

J910276

HEAD (CYLINDER)

(NOTE: 9 mm Injectors) (Prior to Engine SN 44566928), Includes: Ref. 1 - 11

1шт.

J920612

HEAD (CYLINDER)

w/valves (NOTE: 7 mm Injectors) (Engine SN 44566928 and after), Includes: Ref. 1 - 11

1шт.

1

J913391

HEAD (CYLINDER)

(NOTE: 9 mm Injectors) (Prior to Engine SN 44566928)

1шт.

1

J917287

HEAD (CYLINDER)

w/o valves (NOTE: 7 mm Injectors) (Engine SN 44566928 and after)

1шт.

2

J902606

PLUG

expansion, 21 mm OD

5шт.

3

A77429

PLUG

hex socket pipe, 1/2-14 PT

5шт.

4

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8-27 PT

2шт.

5

A77505

PLUG

hex socket pipe, 1/2-18 inch PT

2шт.

6

CASJ900250

RETAINER

valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J900276

VALVE SPRING

12шт.

9

J901097

SEAL

valve

12шт.

10

J920867

VALVE

intake (Replaces J901117)

6шт.

11

J920868

VALVE

exhaust (Replaces J901607)

6шт.

15

J906854

SEAT, VALVE

insert, intake (Service repair only)

6шт.

16

J904105

SEAT, VALVE

insert, exhaust (Service repair only)

6шт.

17

J904408

GUIDE

valve, intake (Service repair only)

6шт.

18

J904409

GUIDE

valve, exhaust (Service repair only)

6шт.

19

J906206

GUIDE

valve, intake and exhaust 11 mm OD (Service repair only)

12шт.

20

J903938

BOLT

hex flange head, 12 mm - 1.75 x 70 mm

6шт.

20

J903939

BOLT

hex flange head, 12 mm - 1.75 x 120 mm

14шт.

22

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

J907555

PLUG

rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

retaining, rocker arm

12шт.

24

J900245

WASHER

thrust, rocker arm

12шт.

25

J910811

ROCKER

intake

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

Steel

1шт.

30

J910810

ROCKER

exhaust

6шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

Steel

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

36

J903940

BOLT

hex flange head, 12 mm - 1.75 x 180 mm

6шт.

38

J904679

PUSH ROD

rocker arm

12шт.

40

J907240

TAPPET

valve, push rod

12шт.
