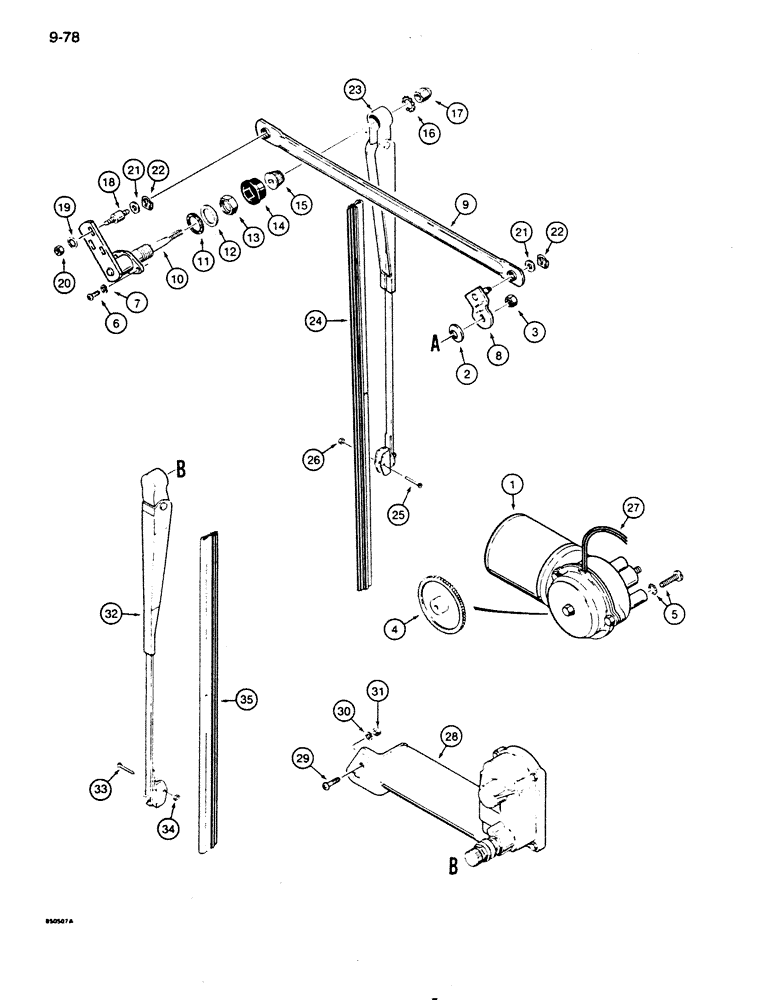

Запчасти Case 855D (9-078) - CAB WINDSHIELD WIPERS (09) - CHASSIS/ATTACHMENTS

F93654

WIPER MOTOR

MOTOR, WIPER front windshield wiper, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

2

D71411

WASHER

motor mounting

1шт.

3

F44452

LOCK NUT

special locking

1шт.

4

N13124

PINION

drive, plastic

1шт.

5

D72849

SCREW

with lock washer, motor mounting

3шт.

6

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

pan head slotted, No. 10 - 32 NF x 1/2", plated

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

8

A36091

ARM

drive

1шт.

9

R51423

ROD

drive arm to pivot shaft assembly

1шт.

D72848

SHAFT

windshield wiper, Includes: Ref. 10 - 19

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - windshield wiper pivot

1шт.

11

D71417

SPECIAL WASHER

felt

1шт.

12

D71418

WASHER

flat, steel

1шт.

13

D71419

NUT

special

1шт.

14

D71420

CAP

rubber

1шт.

15

D71421

TOOL

BUSHING - with teeth

1шт.

16

193-95

LOCK WASHER,Ext Tooth, 5/16"

1шт.

17

D71422

NUT

pivot shaft

1шт.

18

D73642

PIN

bushing, threaded

1шт.

19

193-60

LOCK WASHER,Int Tooth, 1/4"

1шт.

20

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

21

A22431

WASHER

special, retaining

2шт.

22

D71414

CLIP

push-on clip, drive arm attaching parts

2шт.

23

A165060

WIPER ARM

ARM, WIPER windshield wiper, front, 18" (457 mm) long

1шт.

24

F42214

WIPER

front wiper, 18" (457 mm) long, Includes: Ref. 25

1шт.

25

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

26

129-14

NUT,#5-40

Blade attaching

1шт.

27

REF

INSTRUCTION

HARNESS - front windshield wiper motor to wiper switch at cab control panel, see Figure 9-080

1шт.

28

N8711

WIPER MOTOR

MOTOR, WIPER rear windshield wiper

1шт.

29

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

1шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

31

129-17

NUT,Hex, #10 - 24

1шт.

32

F42213

ARM

windshield wiper, rear, 16" (406 mm) long, Includes: Ref. 33 & 34

1шт.

33

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

34

129-14

NUT,#5-40

Blade attaching

1шт.

35

A42580

WIPER BLADE,203.2mm L

BLADE, WIPER rear, 16" (406 mm) long

1шт.
