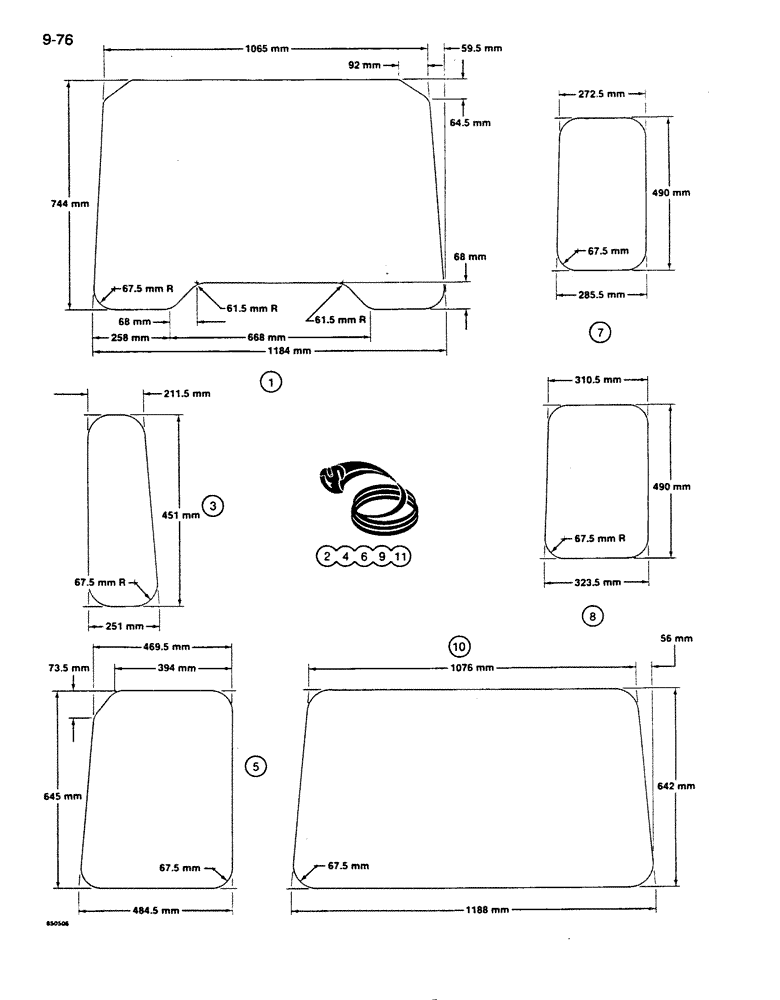

Запчасти Case 855D (9-076) - CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - front windshield

1шт.

2

REF

INSTRUCTION

SEAL - front windshield glass, 3610 mm long, cut from S118468, see below

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - lower front, dozer and drawbar models only

2шт.

4

REF

INSTRUCTION

SEAL - lower front glass, dozer and drawbar models, each 1270 mm long, cut from S118468, see below

2шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side windows

4шт.

6

REF

INSTRUCTION

SEAL - side window glass, each 2135 mm long, cut from S118468, see below

4шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - lower door, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

GLASS - lower door, left-hand

1шт.

9

REF

INSTRUCTION

SEAL - lower door glass, both sides, each 1565 mm long, cut from S118468, see below

2шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.

10

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

11

REF

INSTRUCTION

SEAL - rear window glass, 3460 mm long, cut from S118468, see below

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.

S118468

SEAL

bulk, used around all glass, 15.24 m long

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge(as described in S.A.E. J673a).

1шт.
