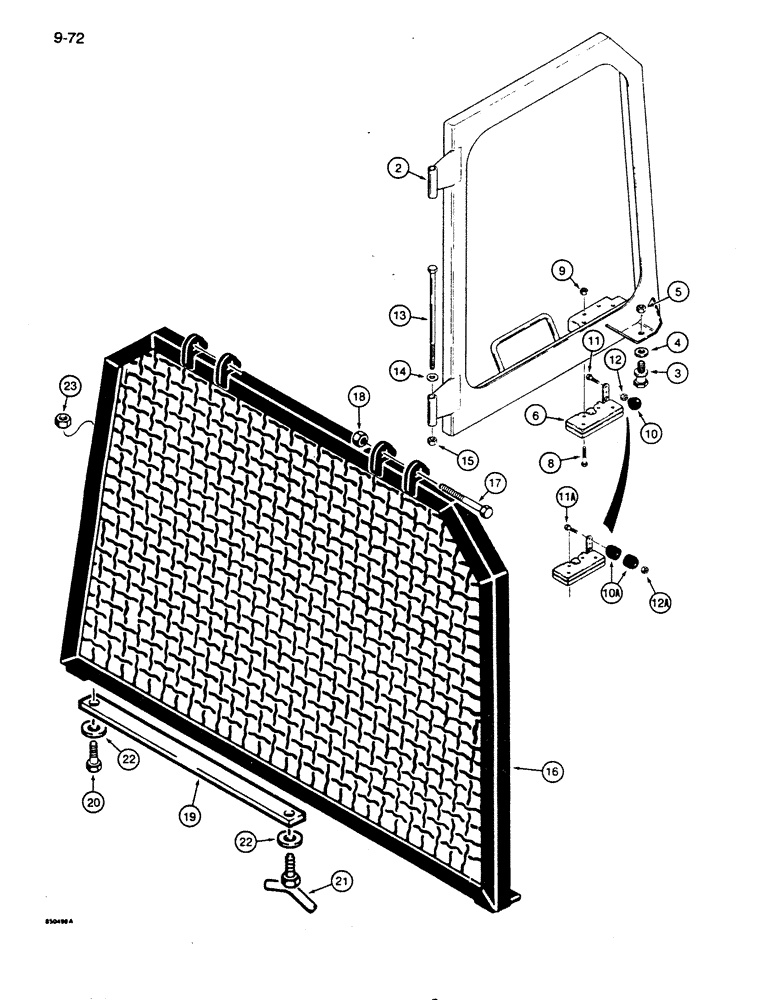

Запчасти Case 855D (9-072) - CAB DOOR WINDOW AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS

1

R51842

FRAME ASSY

door window, left-hand, not shown

1шт.

2

R51843

FRAME ASSY

door window, right-hand

1шт.

3

R51754

STRIKER

on window frame, outer, replaces any other style of striker

2шт.

4

195-105

WASHER,7/16"

flat, , plated 7/16"

2шт.

5

131-595

NUT,7/16"-14

hex, self-locking, 7/16" - 14 NC, plated

2шт.

6

R55002

LATCH

window, right-hand

1шт.

7

R55003

LATCH ASSY.

window, left-hand, not shown

1шт.

8

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

9

86625061

NUT,1/4"-20, GB

8шт.

10

R51755

BALL KNOB

latch release, if used

2шт.

10a

L35871

FENDER

latch release knob, if used

2шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used with R51755 knob, ref 10

2шт.

11a

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

pan slotted, No. 10 NC x 1 inch, used with L35871 bumper, ref 10A

2шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

Used with R51755 knob, Ref 10

2шт.

12a

129-17

NUT,Hex, #10 - 24

Used with L35871 bumper, Ref 10A

2шт.

13

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

14

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

15

230-4216

LOCK NUT,3/8"-16, GA

4шт.

16

R51844

SCREEN

rear

1шт.

17

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

2шт.

19

N7662

BAR

screen mounting, lower

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

21

N8712

BOLT

wing-type, special

3шт.

22

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.
