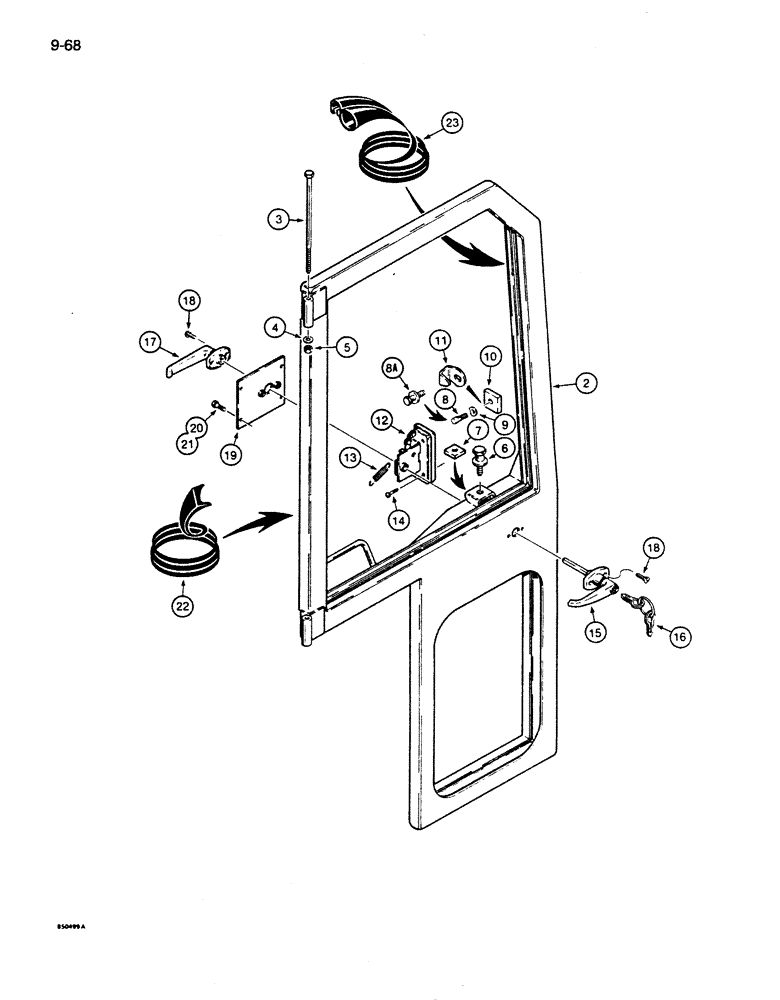

Запчасти Case 855D (9-068) - CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

R51840

DOOR

left-hand, not shown

1шт.

2

R51841

DOOR

right-hand

1шт.

3

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

4

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

5

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

4шт.

6

R51754

STRIKER

window latch, on door frame

2шт.

7

1340380C1

LARGE PLATE

PLATE, LARGE square, tapped, window latch striker retaining, was R51757

2шт.

8

F45073

PIN

door latch, on cab frame, no longer used, replace with R51754 striker, item 8A

2шт.

8a

R51754

STRIKER

door latch, on cab frame

2шт.

9

F44748

SPRING WASHER

special, door latch striker, replaces flat washer used on some models, used with F45073 striker

2шт.

10

1340381C1

LARGE PLATE

PLATE, LARGE square, tapped, door striker retaining, was N6422

2шт.

11

R51756

PROTECTOR

door striker

2шт.

R55000

LATCH ASSY.

door, right-hand, Includes: Ref. 12 & 13

1шт.

R55001

LATCH ASSY.

door, left-hand, not shown, Includes: Ref. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH - door

1шт.

13

D88775

SPRING

right-hand and left-hand latches

1шт.

14

171-240

SCREW,Cross Flat Hd, 1/4" - 20 x 1", W/ Nylon Insert

Phillips head, self-locking, 1/4" - 20 NC x 1"

8шт.

15

1343909C1

HANDLE

door, outer, Includes: Ref. 16

2шт.

16

D88772

KEY

door handle, set of two on a ring

1шт.

17

D88773

HANDLE

door, inner

2шт.

18

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

Phillips oval head, No. 10 - 24 NC x 5/8", plated

8шт.

19

N8706

LARGE PLATE

PLATE, LARGE inner door latch

2шт.

20

187-1071

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

hex head, self-tapping, 5/16" - 18 NC x 1-1/4", plated, if used

8шт.

21

187-1510

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

hex head, self-tapping, No. 10 - 32 NF x 3/8", plated, if used

8шт.

22

R51710

SEAL

around edge of door frame, each 169-5/16" (4300 mm) long, order 2 or more pieces of N6453, see below

2шт.

23

R51711

SEAL

rubber, window frame, attaches to door frame, each 118-1/8" (3000 mm) long, cut from S118469 bulk, see below

2шт.

N6453

SEAL,138 Inches Long

door frame, 138" (3505 mm) long, order 2 or more pieces as necessary

1шт.

S118469

HOSE

bulk roll, 25 ft (7.62 m) long

1шт.

345-22

ADHESIVE

5 fluid ounces, for attaching rubber, Serial Range: seals-metal

1шт.
