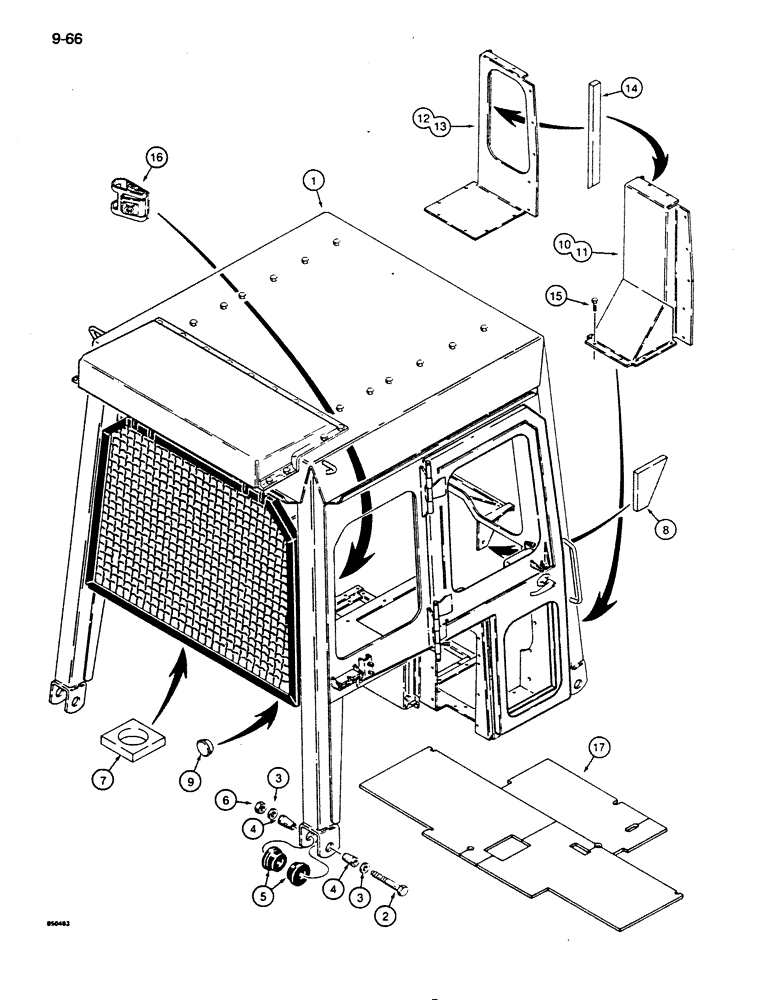

Запчасти Case 855D (9-066) - CAB, MOUNTING, FRONT CLOSURE PANELS, AND FLOORMAT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, machinery item, order from Machinery Price List

1шт.

2

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, 3/4", hardened

8шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

steel

8шт.

5

F44212

MOUNTING PARTS

INSULATOR - rubber, mounting

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

4шт.

7

R50587

SEAL

foam, on cab frame panel over fuel sight gauge

1шт.

8

R50588

SEAL

foam, front, upper, between cab frame and tractor main frame, both sides

2шт.

9

353-407

PLUG,Dome, .687" hole, Nylon

nylon, rear cab frame below screen

2шт.

10

R48697

D PANEL

SPARE PART front closure, left-hand, loader models

1шт.

11

R50584

D PANEL

front closure, right-hand, loader models

1шт.

12

R51343

PANEL

SPARE PART front closure, left-hand, dozer and drawbar models

1шт.

13

R51344

PANEL

SPARE PART front closure, right-hand, dozer and drawbar models

1шт.

14

R50589

GASKET

foam strip, between closure panel and main frame, both sidesø

2шт.

15

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

30шт.

16

A36042

CLIP

fuel shutoff access cover (on heel plate) and battery cover plate (under seat)

3шт.

17

R51309

FLOOR MAT

one-piece

1шт.

345-44

ADHESIVE

for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
