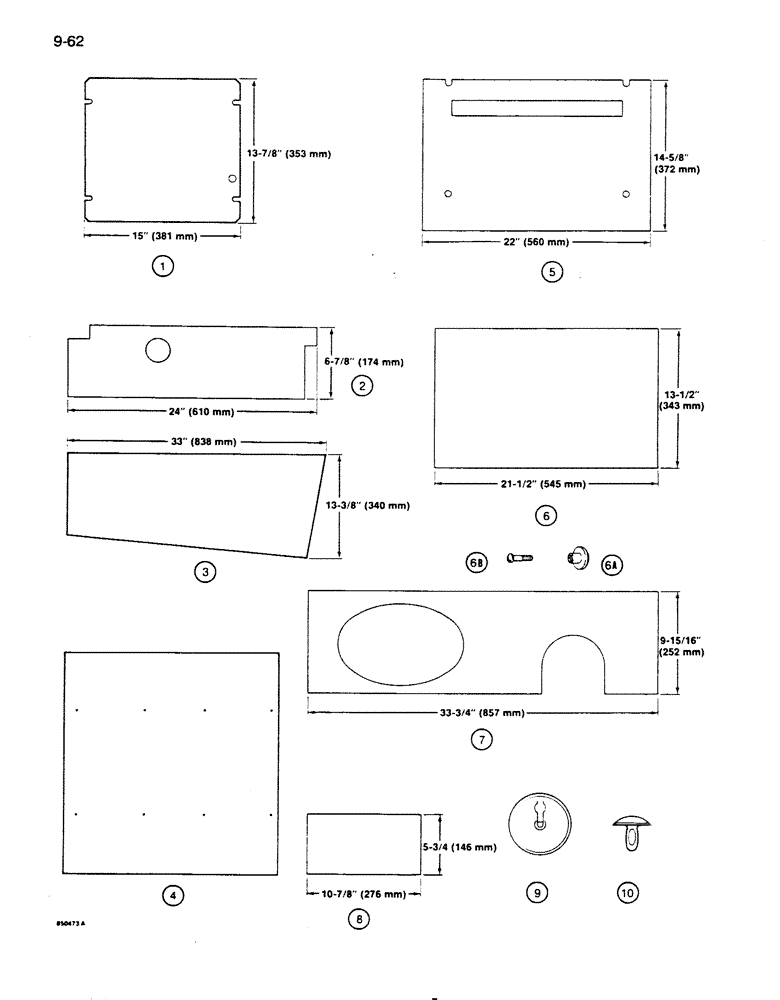

Запчасти Case 855D (9-062) - NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - control valve top cover, cut from R30870, see below

1шт.

2

REF

INSTRUCTION

PAD - heel plate, cut from R30870, see below

1шт.

3

REF

INSTRUCTION

PAD - hood sides, cut from R30870, see below

2шт.

4

R48895

NOISE PROTECTION

HEADLINER - ROPS canopy, vinyl covered

1шт.

5

REF

INSTRUCTION

PAD - seat mounting plate, cut from R30870, see below

1шт.

6

REF

INSTRUCTION

PAD - battery cover plate, cut from R30870, see below

1шт.

6a

R37161

RETAINER

pad, battery cover plate, used with Ref. 6B screw, replaces Ref. 10 retainer used in production on some models

6шт.

6b

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

pan head slotted, No. 10 - 24 NC x 3/4, plated

6шт.

7

REF

INSTRUCTION

PAD - top of right-hand hood, cut from R30870, see below

1шт.

8

REF

INSTRUCTION

PAD - top of left-hand hood, front and rear, cut from R30870, see below

2шт.

9

R37160

RETAINER

spring clip, used with hood pads and seat mounting plate pad

1шт.

10

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

pad, black, plastic, used with ROPS canopy headliner

8шт.

R30870

PAD

bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
