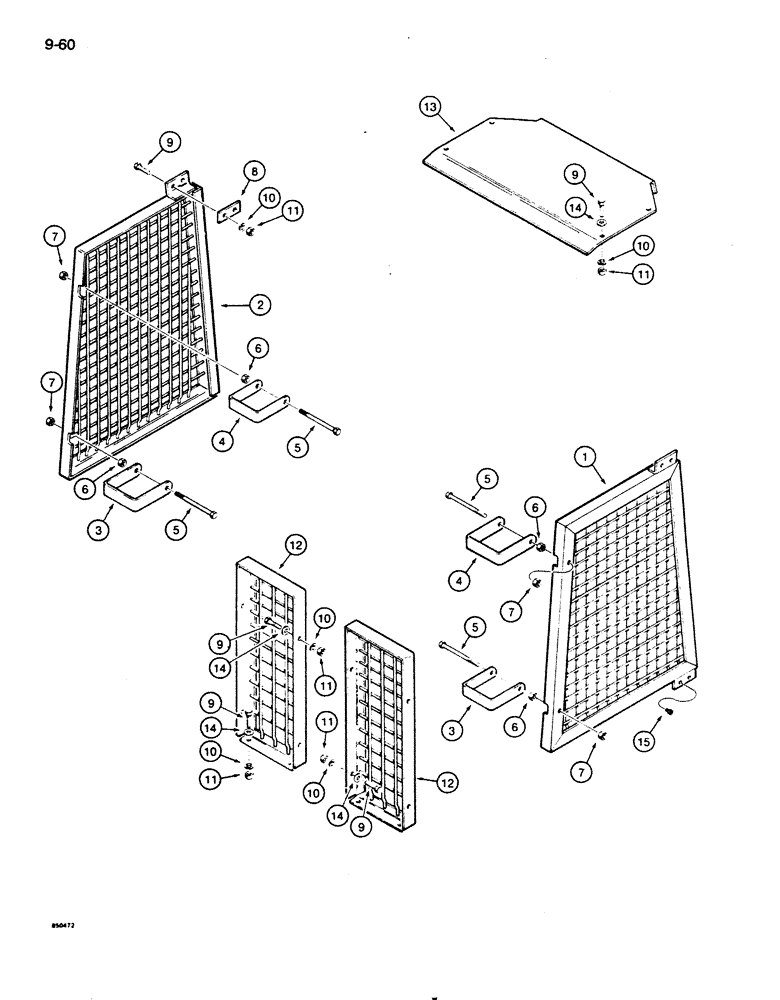

Запчасти Case 855D (9-060) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (09) - CHASSIS/ATTACHMENTS

1

R50420

SCREEN

side, right-hand

1шт.

2

R50419

SCREEN

side, left-hand

1шт.

3

F43755

CLAMP

screen, lower rear

2шт.

4

F44447

CLAMP

screen, upper rear

2шт.

5

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

131-70

NUT,1/2"-13, GB

hex, self-locking, 1/2" - 13 NC, plated

4шт.

8

F44446

NOZZLE HOLDER

screen, upper, front

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4-14шт.

10

192-23

LOCK WASHER,1/2"

4-14шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

4-14шт.

12

F96631

SCREEN

front, dozer models only

2шт.

13

F44448

CABLE EXTENSION

canopy, dozer models only

1шт.

14

195-106

WASHER,1/2"

flat, plated

10шт.

15

R38089

CUSHION ASSY.

rubber, side screens, lower

4шт.
