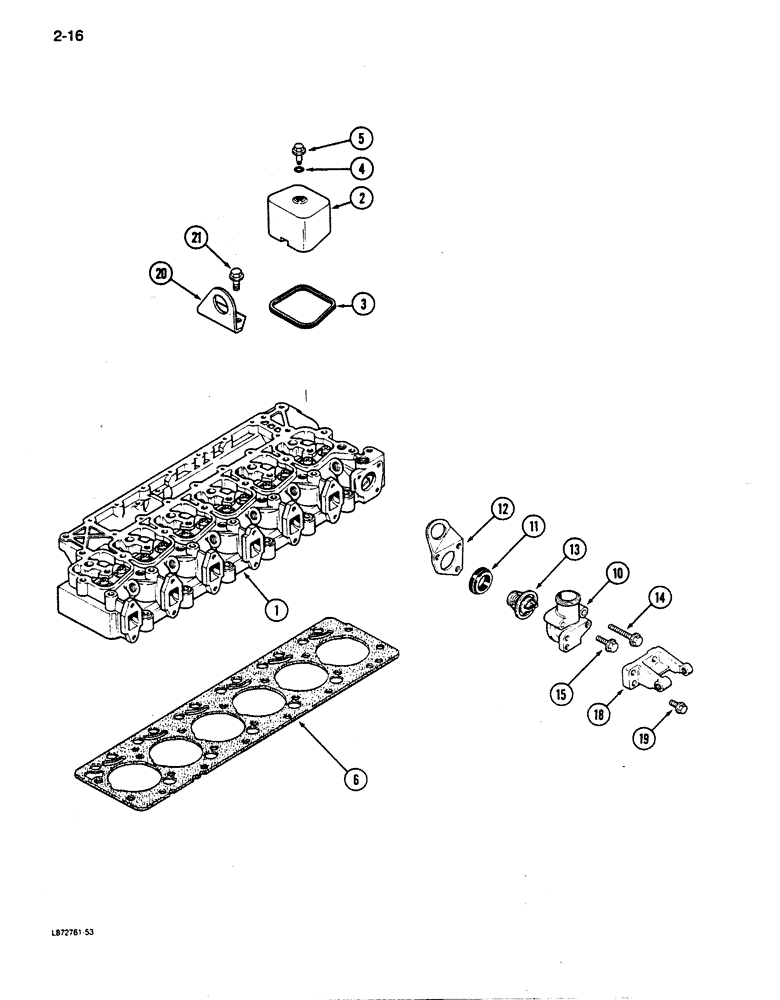

Запчасти Case 855D (2-16) - CYLINDER HEAD COVERS AND GASKET, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder

1шт.

2

J902604

COVER

rocker

6шт.

3

J902666

GASKET

rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J907049

BOLT,Hex

special, 8 mm - 1.25 x 21.25 mm

6шт.

6

J918305

GASKET

head, standard (1-Notch) (Replaces J907057)

1шт.

6

J918306

GASKET

head, 0.25 mm thicker (2 Notches) (Replaces J907058)

1шт.

6

J918307

GASKET

head, 0.50 mm thicker (3 Notches) (Replaces J907059)

1шт.

10

J914409

HOUSING

thermostat (Replaces J903756)

1шт.

11

J920020

GASKET

housing (Replaces J903301), thermostate

1шт.

12

J903757

BRACKET

lifting, front, thermostat & housing

1шт.

13

A77736

THERMOSTAT

THERMOSTAT - water (Replaces J912587), housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat & housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat & housing

1шт.

18

J910713

SUPPORT

alternator mounting, thermostat & housing

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat & Housing

3шт.

20

J908118

BRACKET

lifting, rear, thermostat & housing

1шт.

21

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy, Thermostat & housing

2шт.
