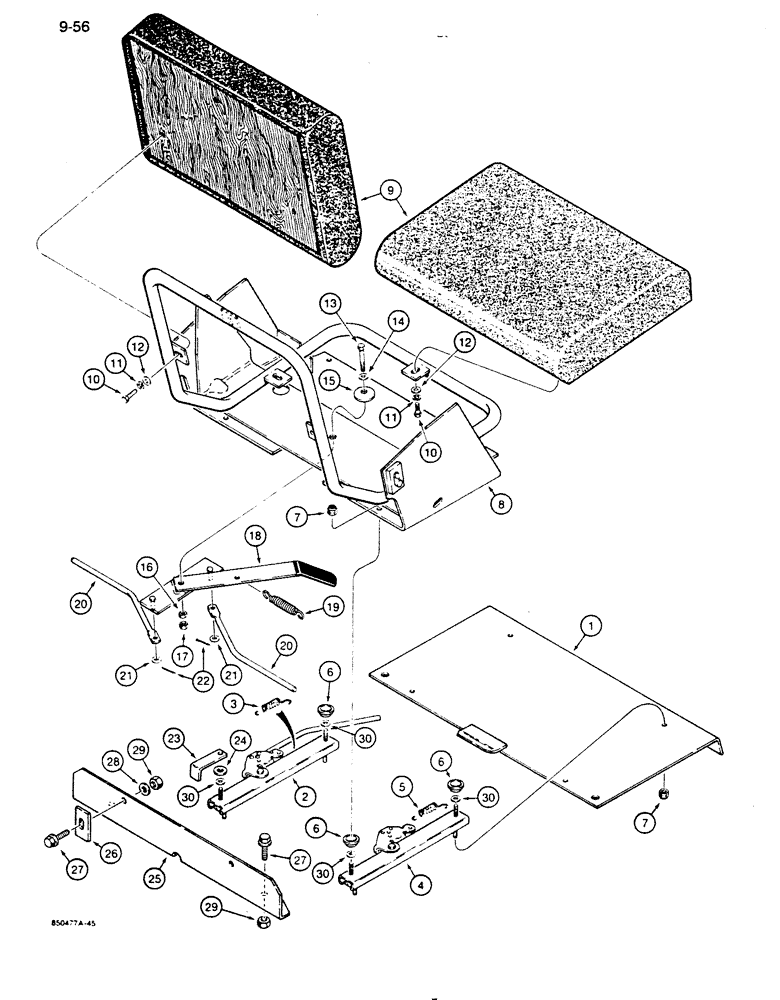

Запчасти Case 855D (9-056) - SEAT, USED ON MODELS WITH A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

seat mounting, for correct part number see Figure 9-032

1шт.

2

R53178

ADJUSTER

left-hand, with adjuster handle

1шт.

3

L35503

SPRING

seat adjuster

1шт.

4

R52275

ADJUSTER

right-hand

1шт.

5

L35503

SPRING

seat adjuster

1шт.

Ref #5 (1.83" Free Length)

1шт.

6

A45111

SPACER

cupped, between seat adjuster and seat frame (not used in rear left-hand position)

3шт.

7

131-665

LOCK NUT,5/16"-18, GB

hex, self-locking, 5/16" - 18 NC, plated

8шт.

8

R49927

FRAME

seat

1шт.

9

R48744

CUSHION ASSY.

seat

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

11

192-21

LOCK WASHER,3/8"

6шт.

12

195-525

WASHER,3/8", SAE

6шт.

13

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

D41740

WASHER

flat, 3/8", hardened

1шт.

15

R14771

WASHER

seat handle mounting

1шт.

16

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

18

R48525

HANDLE

seat release

1шт.

19

R29849

SPRING

seat release handle

1шт.

Ref #19 (3.75" Free Length)

1шт.

20

R48530

ROD

seat release

2шт.

21

195-521

WASHER,5/16", SAE

2шт.

22

132-331

COTTER PIN,3/32" x 5/8"

2шт.

23

R49610

SUPPORT

seat stop, rear of left-hand seat adjuster

1шт.

24

R24323

WASHER

flat, 1/2", hardened

1шт.

25

R50428

SUPPORT

seat support (seat in position to operate backhoe), bolts to battery cover, see Figure 9-032 for correct battery cover

1шт.

26

R49227

LARGE PLATE

PLATE, LARGE seat height alignment

2шт.

27

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

28

95-8

WASHER,1/2"

Flat

2шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

30

495-11031

WASHER

flat, 3/8", zinc plated

4шт.
