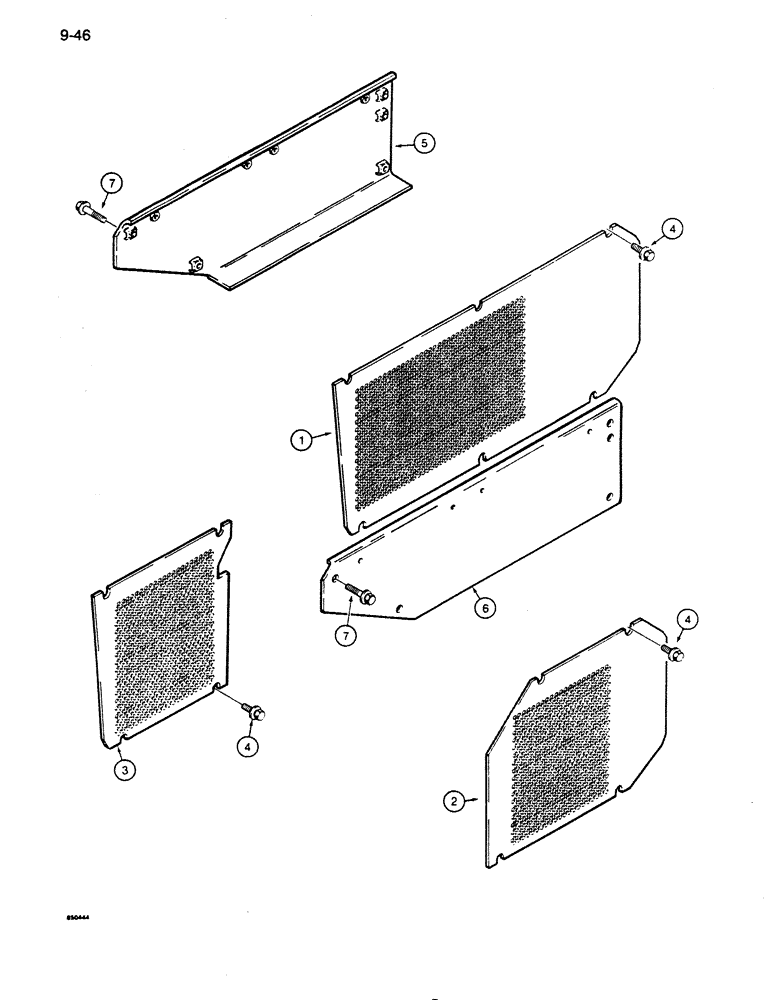

Запчасти Case 855D (9-046) - ENGINE SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R49553

GUARD

engine side, loader models

2шт.

2

R49552

GUARD

engine side, front, dozer and drawbar models

2шт.

3

R42613

LARGE PLATE

PLATE, LARGE engine side, rear, dozer and drawbar models

2шт.

4

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12-16шт.

5

R49548

GUARD

lower, left-hand, used on all models

1шт.

6

R49549

GUARD

lower, right-hand, used on all models

1шт.

7

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

70996

CAGE

1шт.

129-857

SQUARE NUT,Sq, 1/2"-13

cage

1шт.
