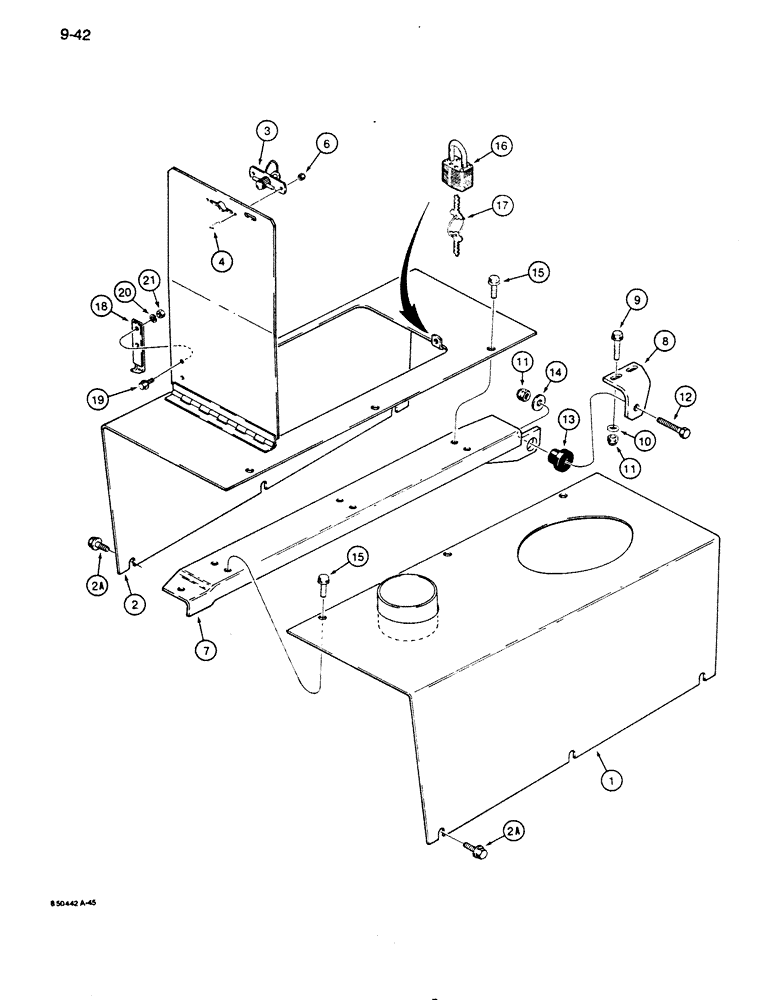

Запчасти Case 855D (9-042) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R51670

HOOD

right-hand

1шт.

2

R51671

HOOD

left-hand

1шт.

2a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

3

L102515

LATCH

access door, air cleaner

1шт.

4

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

pan head slotted, No. 10 - 24 NC x 1/2", plated

2шт.

6

F45165

SPECIAL NUT,#10-24

hex, self-locking, No. 10 - 24 NC, Teflon coated, special, replaces lock washer and regular hex nut used in production on some models, if used

2шт.

7

R51760

SUPPORT

center, hood mounting

1шт.

8

R53987

SUPPORT

hood retainer, front, bolts to radiator top cover

1шт.

9

121-431

FLANGE BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex flange head, 1/2" - 13 NC x 1-3/4", grade 8, Teflon coated

2шт.

10

R24323

WASHER

flat, 1/2", hardened

2шт.

11

131-70

NUT,1/2"-13, GB

hex, self-locking, 1/2" - 13 NC, plated

3шт.

12

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

13

CASL13142

BUSHING

hood mounting

1шт.

14

D25022

WASHER

flat, 1/2", hardened, large OD

1шт.

15

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

7шт.

16

D93753

PADLOCK

air cleaner access cover, Includes: Ref. 17

1шт.

17

R29555

KEY

for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

18

R50492

SUPPORT

stop, air cleaner access door, used on models with cab only

1шт.

19

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used on models with cab only

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Used on models with cab only

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

Used on models with cab only

2шт.
