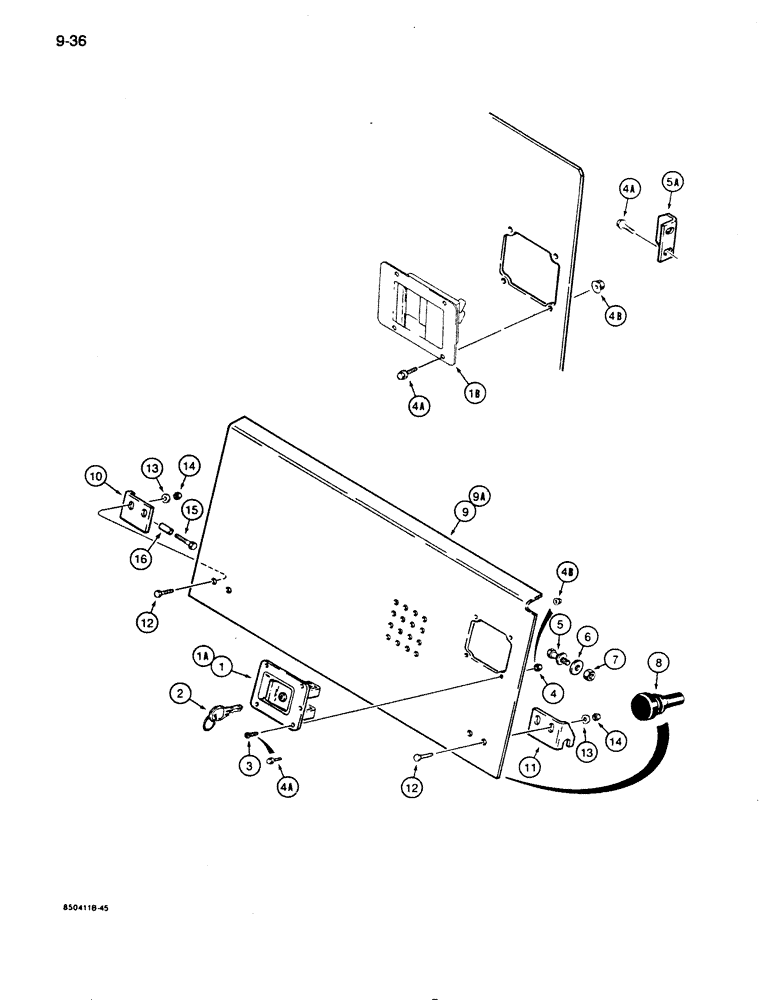

Запчасти Case 855D (9-036) - REAR ACCESS COVER, USED ON MODELS WITH A BACKHOE ONLY (09) - CHASSIS/ATTACHMENTS

1

R49213

LATCH ASSY.

rear access cover, No. 10 mounting holes, use with ref 5 striker, if used

1шт.

1a

R54912

LATCH ASSY.

rear access cover, 1/4" mounting holes, use with ref 5 striker, if used

1шт.

1b

R56221

LATCH

rear access cover, 1/4" mounting holes, use with ref 5A striker, if used

1шт.

2

R49215

KEY

latch

1шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

4шт.

4

F45165

SPECIAL NUT,#10-24

hex, self-locking, No. 10 NC, if used

4шт.

4a

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used

4-6шт.

4b

131-1351

FLANGE NUT,Flg, 1/4"-20

If used

4шт.

5

R49214

BOLT

rear cover latch, if used

1шт.

5a

R56397

LARGE PLATE

PLATE, LARGE rear cover latch, if used

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, special, if used

1шт.

7

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8 NC, if used

1шт.

8

A161780

BUMPER

rear cover, on hydraulic reservoir flange

1шт.

9

R52065

LARGE PLATE

PLATE, LARGE rear, with decals, No. 10 latch mounting holes, no longer available, order R55914 cover (ref 9A), R54912 latch (ref 1A) and 1/4 inch hardware (ref 4A and 4B)

1шт.

9a

R55914

LARGE PLATE

PLATE, LARGE rear, with decals, 1/4 inch latch mounting holes

1шт.

10

R47813

ANGLE

cover mounting, left-hand

1шт.

11

R47814

ANGLE

cover mounting, right-hand

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

D41740

WASHER

flat, 3/8", hardened

4шт.

14

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, plated

4шт.

15

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

16

D33553

BUSHING

bracket

2шт.
