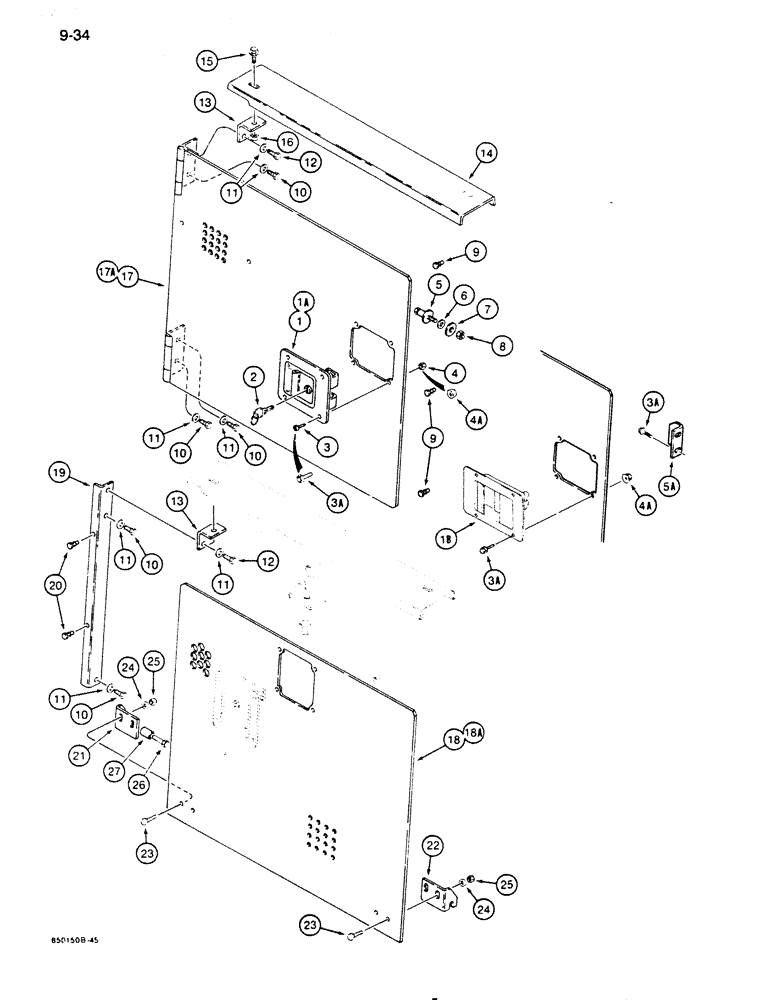

Запчасти Case 855D (9-034) - REAR ACCESS COVER, USED ON ALL MODELS WITHOUT A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

R49213

LATCH ASSY.

rear access cover, uses No. 10 hardware, use with ref 5 striker, if used

1шт.

1a

R54912

LATCH ASSY.

rear access cover, uses 1/4 inch hardware, use with ref 5 striker, if used

1шт.

1b

R56221

LATCH

rear access cover, uses 1/4 inch hardware, use with ref 5A striker, if used

1шт.

2

R49215

KEY

for R49213 or R54912 latch

1шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

4шт.

3a

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used

4-6шт.

4

F45165

SPECIAL NUT,#10-24

hex, self-locking, No. 10 - 24 NC, if used

4шт.

4a

131-1351

FLANGE NUT,Flg, 1/4"-20

If used

4шт.

5

R49214

BOLT

rear cover latch, if used

1шт.

5a

R56397

LARGE PLATE

PLATE, LARGE rear cover latch, if used

1шт.

6

95-6

WASHER,3/8"

Used as a shim, if used

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, special, if used

1шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, if used

1шт.

9

A161780

BUMPER

rear cover, on hydraulic reservoir flange, if used

3шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3-4шт.

11

D41740

WASHER

flat, 3/8", hardened

4-5шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

R48725

SUPPORT

top cover support

2шт.

14

R49363

COVER

top

1шт.

15

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

16

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

R51375

COWLING ASSY

rear, hinged, includes decals, models without a backhoe or winch models without a raised arch, used on models with No. 10 latch mounting hardware, Ref. 3 & 4, if used

1шт.

17a

R55173

COWLING ASSY

rear, hinged, includes decals, models without a backhoe or winch models without a raised arch, used on models with 1/4 inch latch mounting hardware, Ref. 3A & 4A, if used

1шт.

18

R50394

HOOD

rear, bolt-on, includes decals, used on models with No. 10 latch mounting hardware, Ref. 3 & 4, if used, winch with raised arch

1шт.

18a

R55174

COVER

rear, bolt-on, includes decals, used on models with 1/4" latch mounting hardware, items 3A and 4A, if used, winch with raised arch

1шт.

19

R51413

SUPPORT

rear cover mounting, used on winch with raised arch

1шт.

20

A161780

BUMPER

rear cover, used on winch with raised arch

2шт.

21

R47813

ANGLE

cover mounting, left-hand, used on winch with raised arch

1шт.

22

R47814

ANGLE

cover mounting, right-hand, used on winch with raised arch

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used on winch with raised arch

4шт.

24

D41740

WASHER

flat, 3/8", hardened, used on winch with raised arch

4шт.

25

131-203

LOCK NUT,3/8"-16, GB, LH

hex, self-locking, 3/8" - 16 NC, plated, used on winch with raised arch

4шт.

26

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Used on winch with raised arch

2шт.

27

D33553

BUSHING

bracket, used on winch with raised arch

2шт.

Hinges for door are R50984.

1шт.
