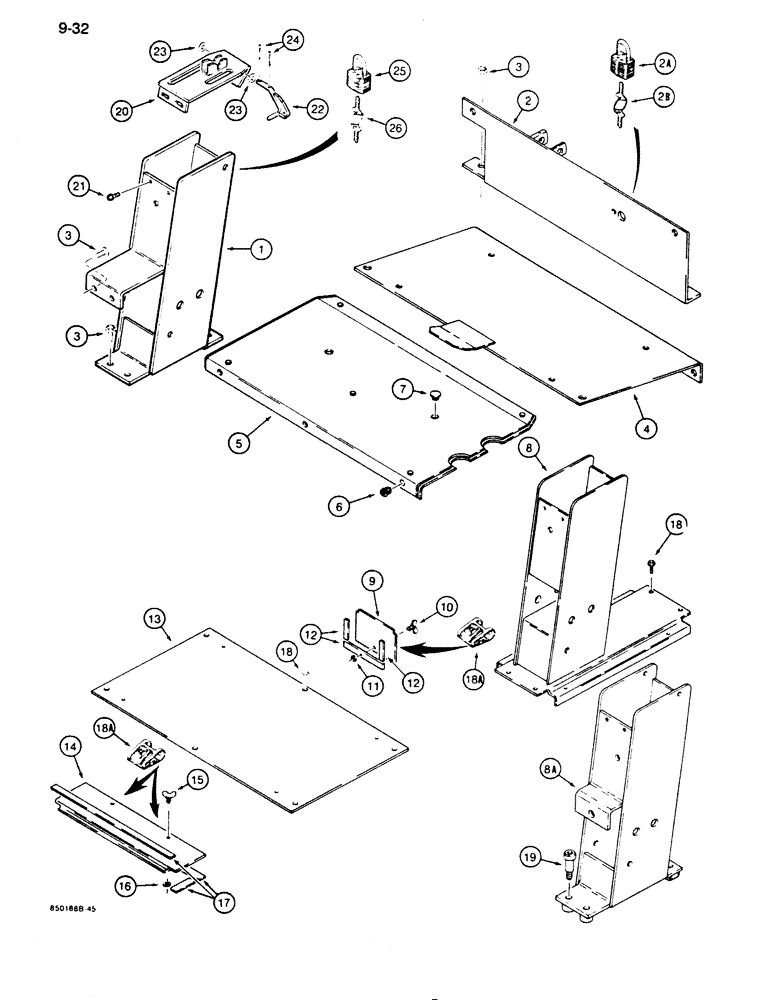

Запчасти Case 855D (9-032) - OPERATORS COMPARTMENT FRAMES, CONTROL TOWER, HEEL PLATE, SEAT MOOUNTING PLATE & BATTERY COVER (09) - CHASSIS/ATTACHMENTS

1

R32049

SUPPORT ASSY.

transmission controls, models without cab

1шт.

2

R54235

LARGE PLATE

PLATE, LARGE heel, includes decal, models without cab

1шт.

2a

D93753

PADLOCK

master disconnect switch, if used, models without cab, Includes: Ref. 2B

1шт.

2b

R29555

KEY

Master padlock only, models without cab

2шт.

2b

D93751

SET OF 2 KEYS

for Yale padlock only, models without cab

2шт.

3

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Models without cab

12шт.

4

R53232

LARGE PLATE

PLATE, LARGE seat mounting, includes battery decal, models without cab

1шт.

5

R51320

COVER

battery, models without cab, Includes: Ref. 6

1шт.

6

F22426

STOP

rubber, models without cab

3шт.

7

353-404

PLUG,Dome, .500" hole, Nylon

If used, models without cab

1-2шт.

8

R48704

SUPPORT

SPARE PART transmission controls, see illustration, models with cab

1шт.

8a

R56448

SUPPORT

SPARE PART transmission controls, see illustration, models with cab

1шт.

9

R51352

PANEL

cover, master disconnect switch, models with cab, Includes: Ref. 10 - 12

1шт.

10

L40220

FASTENER

wing, fuel shutoff cover, models with cab

1шт.

11

A36041

RETAINER

stud, fuel shutoff cover, models with cab

1шт.

12

REF

INSTRUCTION

SEAL, foam, 9-1/16" (230 mm) long, cut from A42905 below, models with cab

1шт.

For noise reduction pads, see Figure 9-062.

1шт.

13

R48695

LARGE PLATE

PLATE, LARGE seat mounting, models with cab

1шт.

14

R51353

COVER

battery, models with cab, Includes: Ref. 15 - 17

1шт.

15

L40220

FASTENER

wing, battery cover, models with cab

2шт.

16

NLS

NO LONGER SERVICED

stud, battery cover, models with cab

2шт.

17

REF

INSTRUCTION

SEAL - foam, 33-7/8" (860 mm) long, cut from A42905 below, models with cab

1шт.

For noise reduction pads, see Figure 9-062.

1шт.

18

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Models with cab

8-10шт.

18a

A36042

CLIP

fuel shutoff access cover and battery cover, models with cab

3шт.

19

121-439

BOLT - shoulder, hex socket, 1/2 NC x 2 inch, if used, models with cab

2шт.

20

R32054

SUPPORT

top, locking, nuetral start lockup parts, if used

1шт.

21

121-20

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

Replaces regular bolt and lockwasher used in production on some models, nuetral start lockup parts, if used

2шт.

22

R36318

LOCK

neutral start button, lockup parts, if used

1шт.

23

195-517

WASHER,1/4"

flat, 17/64", plated, nuetral start lockup parts, if used

2шт.

24

132-328

COTTER PIN,1/16" x 1/2"

Neutral start lockup parts, if used

2шт.

25

D93753

PADLOCK

control tower cover, nuetral start lockup parts, if used, Includes: Ref. 26

1шт.

26

R29555

KEY

for Master padlock only, nuetral start lockup parts, if used

2шт.

26

D93751

SET OF 2 KEYS

for Yale padlock only, nuetral start lockup parts, if used

2шт.

A42905

FOAM

bulk roll, 50 ft (15.2 m) long x 1/2" (12.7 mm) wide x 1/8" (3 mm) thick, adhesive-backed, nuetral start lockup parts, if used

1шт.

For noise reduction pads, see Figure 9-062.

1шт.
