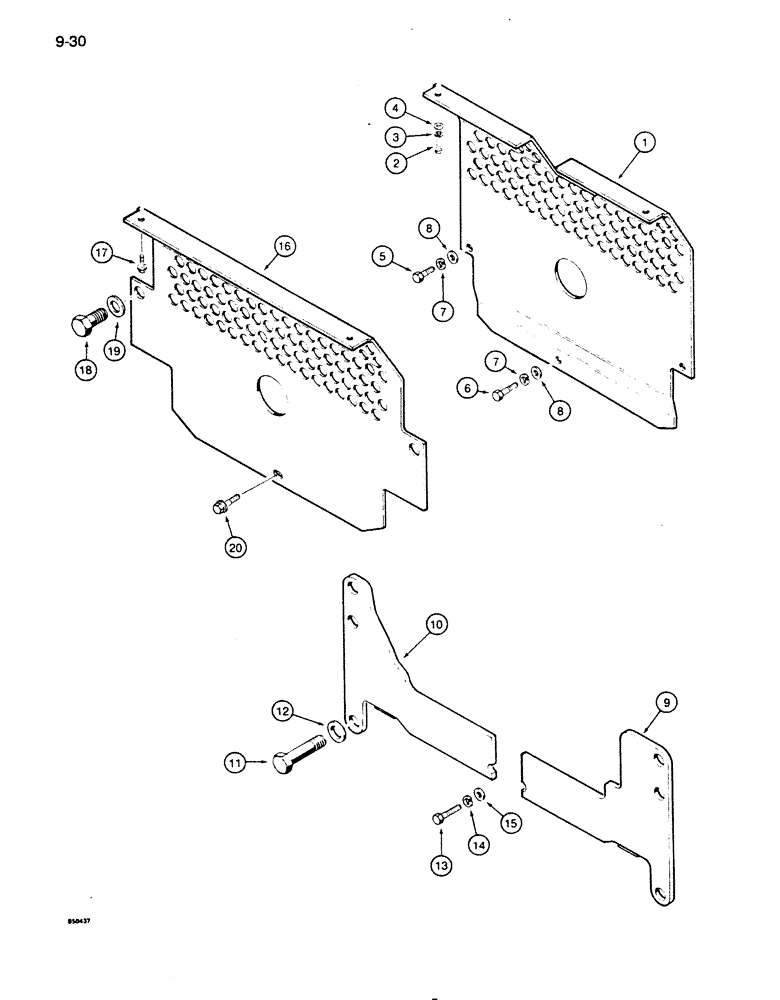

Запчасти Case 855D (9-030) - REAR TRANSMISSION GUARDS (09) - CHASSIS/ATTACHMENTS

1

R51764

GUARD

models with a ripper

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

2шт.

4

195-525

WASHER,3/8", SAE

2шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

7

192-23

LOCK WASHER,1/2"

3шт.

8

195-533

WASHER,1/2", SAE

3шт.

9

R37435

GUARD

right-hand, models with a winch

1шт.

10

R37437

GUARD

left-hand, models with a winch

1шт.

11

113-920

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

Models with a winch

6шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1", hardened, models with a winch

6шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Models with a winch

1шт.

14

192-23

LOCK WASHER,1/2"

Models with a winch

1шт.

15

95-8

WASHER,1/2"

Flat, Models with a winch

1шт.

16

R51773

GUARD

dozer or drawbar models with no rear equipment

1шт.

17

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Used on dozer or drawbar models with no rear equipment

2шт.

18

113-920

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

Used on dozer or drawbar models with no rear equipment

2шт.

19

D30196

WASHER

flat, 1", hardened, used on dozer or drawbar models with no rear equipment

2шт.

20

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

Teflon coated, used on dozer or drawbar models with no rear equipment

1шт.
