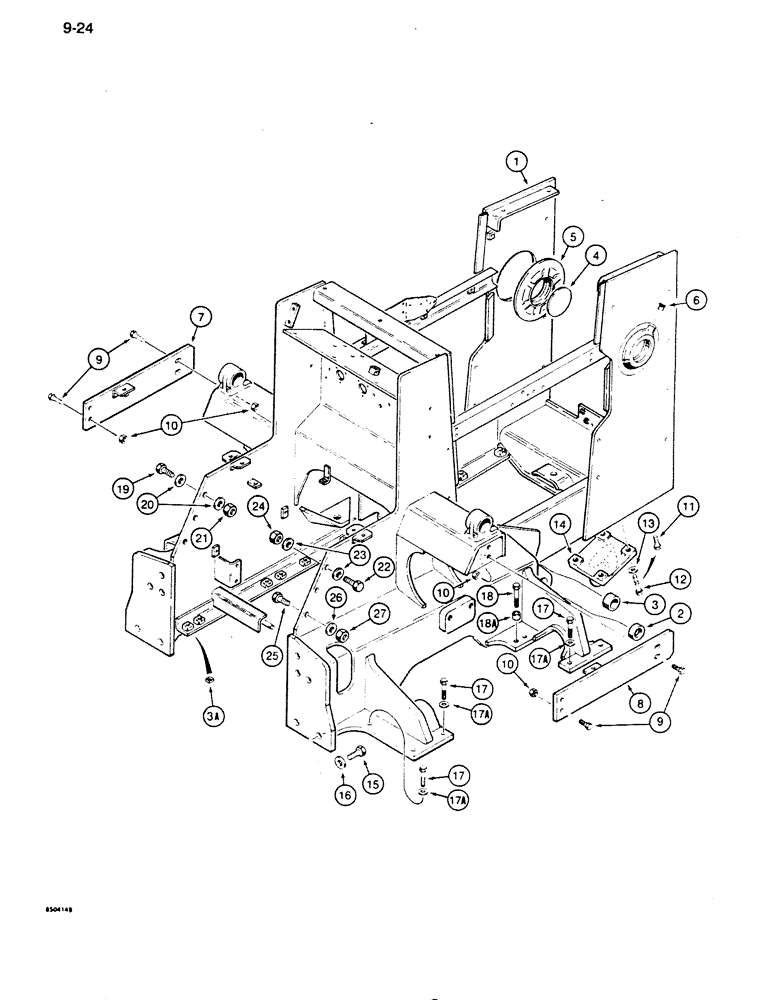

Запчасти Case 855D (9-024) - MAIN FRAME FOR DOZER MODELS (09) - CHASSIS/ATTACHMENTS

1

R50608

FRAME

60" (1524 mm) gauge standard dozer models, no longer available, order R57062 frame and R57812 cooler tube on Figure 6-42, Includes: Ref. 2 - 6

1шт.

1

R57062

FRAME

SPARE PART 60" (1524 mm) gauge standard dozer models, Includes: Ref. 2 - 6

1шт.

1

R50609

FRAME

70" (1778 mm) gauge LGP dozer models, not shown, Includes: Ref. 2 - 6

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

C-frame mounting, outer, 1" (25 mm) wide

2шт.

3

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

C-frame mounting, inner, 1-7/8" (48 mm) wide

2шт.

3a

25-2810

SQUARE NUT

square, heavy, 5/8 inch NC, weld-on, for mounting undercarriage guards

24шт.

4

R31950

COVER

cover, inside trunnion

2шт.

5

R48191

RACE

lift cylinder trunnion

2шт.

6

D28481

PLUG

trunnion race

2шт.

7

R33300

LARGE PLATE

PLATE, LARGE left-hand

1шт.

8

R33301

LARGE PLATE

PLATE, LARGE right-hand

1шт.

9

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

Teflon coated

8шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

11

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used without pull hook, if used

4шт.

12

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used with pull hook, if used

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

4шт.

14

71671

PLATE ASSY.

front, if used

1шт.

15

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite 242

10шт.

16

D30196

WASHER

flat, 1", hardened

10шт.

17

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Use with Loctite 242

12шт.

17a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

12шт.

18

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Used with Loctite 242, forward mounting leg, inner bolts, both sides of frame

8шт.

18a

R30398

SPACER

use with Ref. 18 bolt

8шт.

19

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models without a winch or backhoe

6шт.

20

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 5/8", hardened, models without a winch or backhoe

12шт.

21

129-107

NUT,5/8"-11, G5

Models without a winch or backhoe

6шт.

22

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Upper hole, models with a winch or backhoe

2шт.

23

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 5/8", hardened, upper hole, models with a winch or backhoe

4шт.

24

129-107

NUT,5/8"-11, G5

Upper hole, models with a winch or backhoe

2шт.

25

D30593

BOLT

special, lower two holes, models with a winch or backhoe

4шт.

26

A57033

WASHER

hardened, special, lower two holes, models with a winch or backhoe

4шт.

27

129-109

NUT,7/8"-9, G5

Lower two holes, models with a winch or backhoe

4шт.
