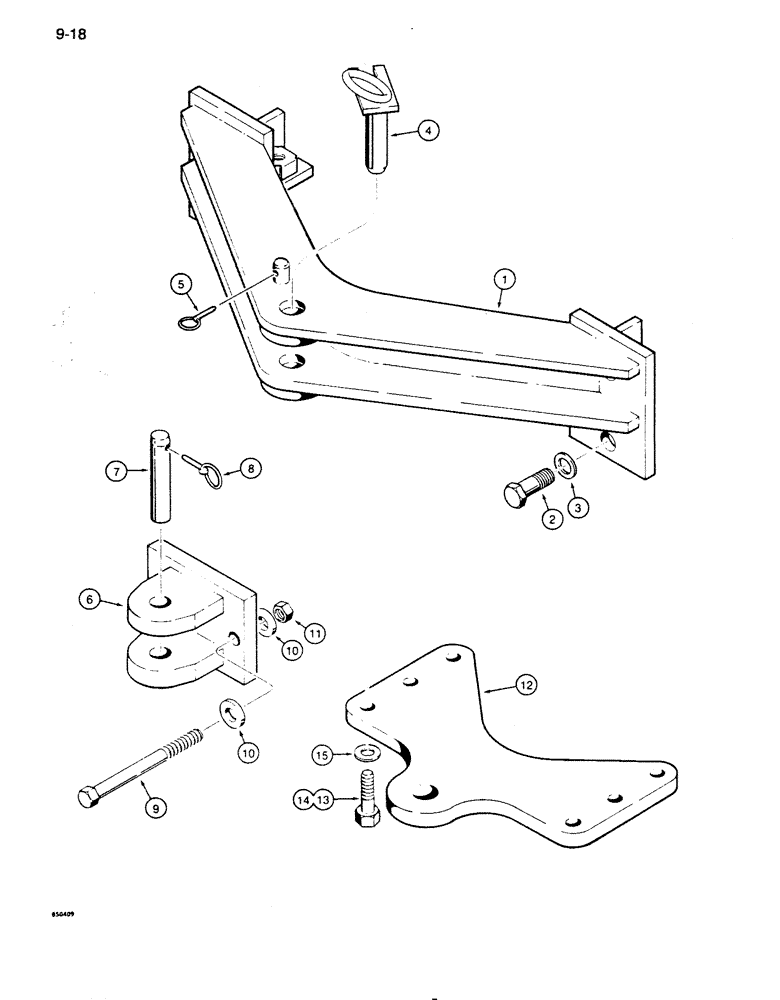

Запчасти Case 855D (9-018) - DRAWBARS, DOZER OR DRAWBAR MODELS - NO REAR EQUIPMENT (09) - CHASSIS/ATTACHMENTS

1

R43751

DRAWBAR

dozer or drawbar models with no rear equipment

1шт.

2

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

3

D30196

WASHER

1", hardened

4шт.

4

R33340

PIN

drawbar

1шт.

5

A30338

PIN

self-locking

1шт.

6

R39904

DRAWBAR

loader models with no rear equipment, bolt to rear counterweight (see Figure 9-020)

1шт.

7

D35202

PIN

drawbar, loader models with no rear equipement

1шт.

8

D33805

PIN

self-locking, loader models with no rear equipement

1шт.

9

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Loader models with no rear equipment

2шт.

10

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, 3/4", hardened, loader models with no rear equipement

4шт.

11

129-108

NUT,3/4"-10, G5

Loader models with no rear equipment

2шт.

12

R37324

DRAWBAR

used on models with a winch, cannot be used on winches with a 4-roller fairlead

1шт.

13

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on winches without a fairlead

6шт.

14

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Used on winches with a 3-roller fairlead

6шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened, models with a winch

6шт.
