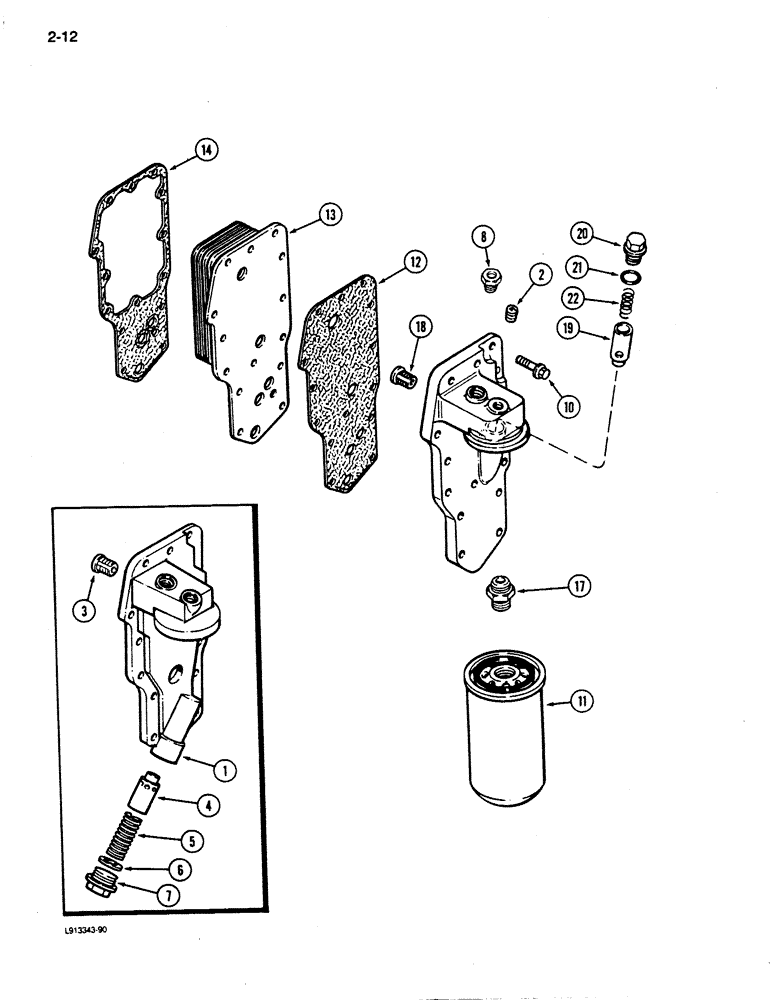

Запчасти Case 855D (2-12) - OIL FILTER AND COOLER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

filter, lube oil

1шт.

2

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8-27 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

EF relief

1шт.

4

J909376

PLUNGER

regulator, pressure

1шт.

5

J903261

SPRING

compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug

1шт.

7

J904386

PLUG

pipe

1шт.

8

A77428

PLUG

hex socket pipe, 1/4-18 inch PT (Used on Natural Aspirated engine)

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

11

J908615

FILTER

lube oil (Cartridge)

1шт.

12

J918257

GASKET

filter head (Replaces J912532)

1шт.

13

J918293

COOLER

oil (Replaces J911940)

1шт.

14

J918256

GASKET

cooler core, oil (Replaces J904427)

1шт.

J918954

HEAD

lube oil filter, Includes: Ref. 16 & 17

1шт.

16

J918328

HEAD

lube oil filter

1шт.

17

J909355

ADAPTER

filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

EF relief

1шт.

19

J918428

PLUNGER

regulator, pressure

1шт.

20

J915787

PLUG

pipe

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.

22

J918427

SPRING

compression

1шт.
