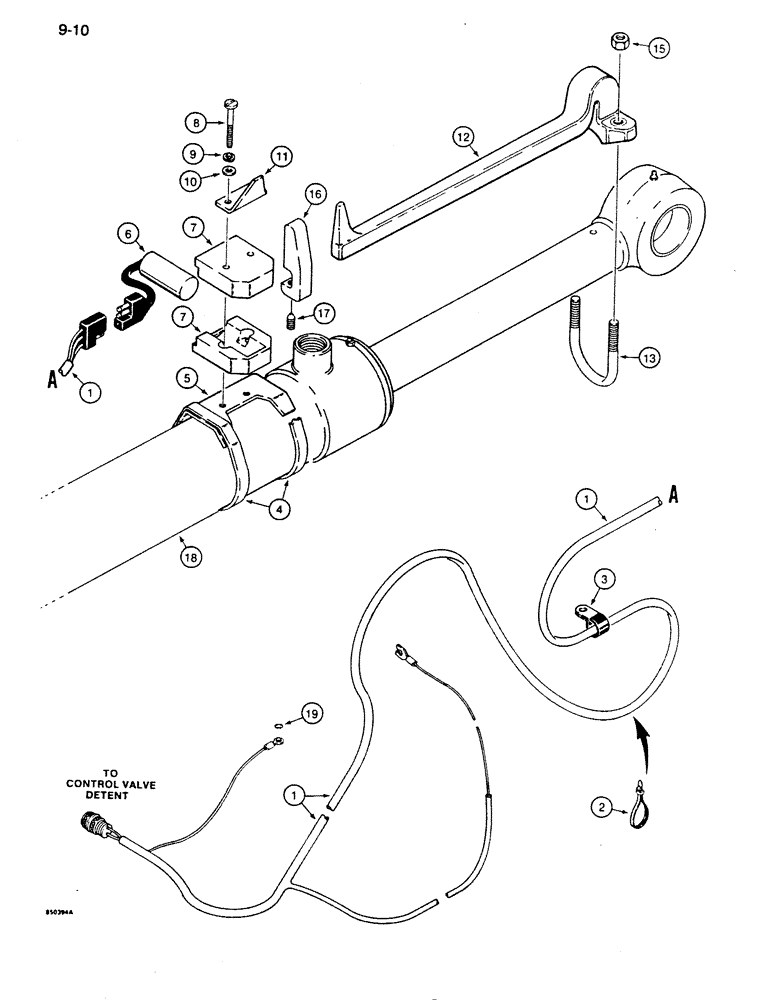

Запчасти Case 855D (9-010) - LOADER RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

R51896

WIRE HARNESS

return-to-dig switch to magnetic detent section of control valve and to engine oil pressure switch behind the instrument panel, includes magnetic detent connector

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

3

49838

CLAMP

harness, attaches to bucket cylinder along with bucket hydraulic lines, if used

1шт.

4

214-180

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

adj, 3-3/4 - 4-5/8 inch dia, switch mounting bracket to bucket cylinder

2шт.

5

R52530

LARGE PLATE

PLATE, LARGE switch mounting

1шт.

6

R47120

SWITCH

return-to-dig

1шт.

7

L117005

CLAMP

return-to-dig switch, plastic

2шт.

8

182-211

SCREW,Sl Pan Hd, 1/4" - 20 x 2"

machine, pan head slotted, 1/4 NC x 2 inch, replaces hex head bolt used in production on some models

2шт.

9

492-11025

LOCK WASHER,1/4"

2шт.

10

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16 ")

2шт.

11

R53354

BRACKET

bucket position indicator, plastic, replaces metal pointer used in production on some models

1шт.

12

R52412

ARM

return-to-dig

1шт.

13

R53616

BOLT

return-to-dig arm

1шт.

15

131-1216

LOCK NUT,3/8"-16, GC

Replaces lock washer and regular hex nut used in production on some models

2шт.

16

R49818

INDICATOR

bucket position, used on models with a clam bucket

1шт.

17

178-43

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

set, hex socket headless, 5/16 NC x 5/8 inch, cone, use with Loctite 242

1шт.

18

G101210

CYLINDER

loader bucket, right-hand, parts lists Figure 8-050

1шт.

19

193-53

LOCK WASHER,Ext Tooth, 3/8"

Harness ground at control valve

1шт.
