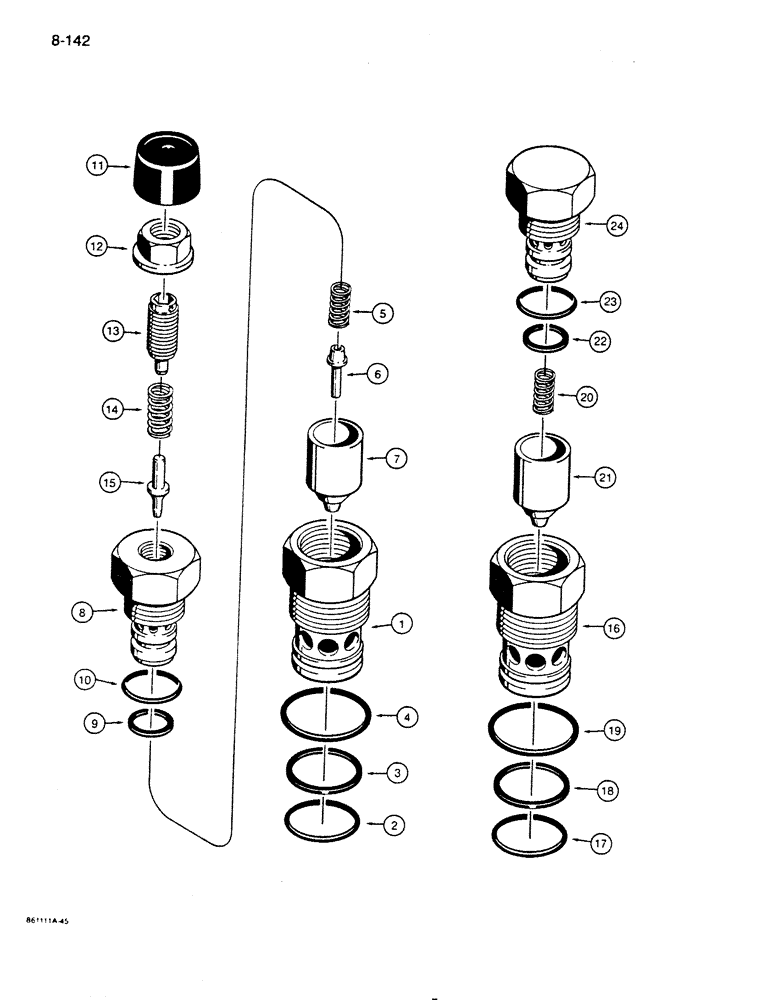

Запчасти Case 855D (8-142) - CIRCUIT RELIEF AND ANTICAVITATION VALVES (08) - HYDRAULICS

S300440

VALVE

circuit relief and anticavitation, loader or dozer ripper, loader clam or bucket, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

1-2шт.

S300434

VALVE

circuit relief and anticavitation, loader lift, clam bucket or ripper sections, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

1шт.

S300433

VALVE

circuit relief and anticavitation, loader bucket section, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

small, body

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

small O-ring

1шт.

4

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

large, body

1шт.

5

N9267

SPRING

plunger

1шт.

6

N9264

PLUNGER

valve

1шт.

7

N9263

PISTON

anticavitation

1шт.

8

N13269

SEAT, VALVE

valve

1шт.

9

N13271

O-RING

special, with O-ring

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large, poppet

1шт.

11

N9270

CAP

valve

1шт.

12

N9269

SPECIAL NUT

special

1шт.

13

N9266

ADJUSTMENT SCREW,M10 x 1 x 1.14mm

special, adjusting

1шт.

14

N13270

SPRING

relief

1шт.

15

N9265

PISTON

relief

1шт.

N14024

VALVE

anticavitation, loader and dozer lift sections, Includes: Ref. 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - N14024 anticavitation vavle

1шт.

17

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

small, body, N14024 anticavitation vavle

1шт.

18

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

backup, small O-ring, N14024 anticavitation vavle

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

large, body, N14024 anticavitation vavle

1шт.

20

N9267

SPRING

poppet, N14024 anticavitation vavle

1шт.

21

N9263

PISTON

N14024 anticavitation vavle

1шт.

22

N13271

O-RING

special, with O-ring, N14024 anticavitation vavle

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

plug, N14024 anticavitation vavle

1шт.

24

N14025

PLUG

N14024 anticavitation vavle

1шт.
