Запчасти Case 855D (8-134) - D87078 AND D88766 AUXILIARY SECTIONS RIPPER, CLAM BUCKET, OR OTHER AUX. EQUIPMENT (08) - HYDRAULICS

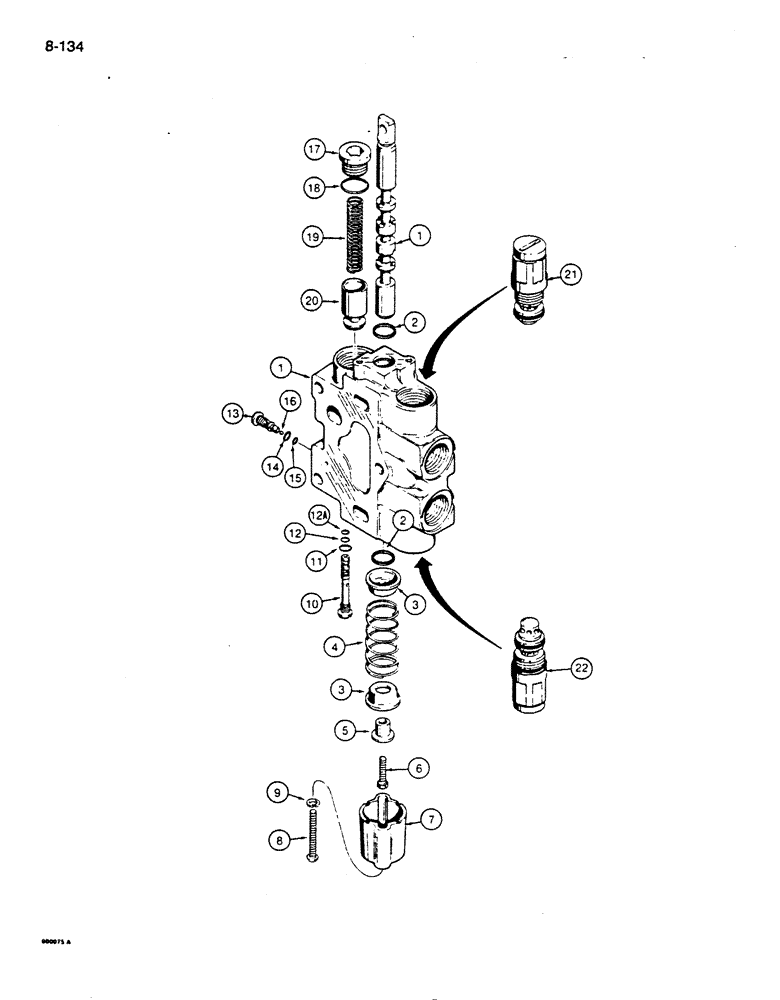

Схема запчастей Case 855D - (8-134) - D87078 AND D88766 AUXILIARY SECTIONS RIPPER, CLAM BUCKET, OR OTHER AUX. EQUIPMENT (08) - HYDRAULICS
19
3
1
10
18
11
21
9
12
12a
4
16
20
1
22
7
13
2
17
8
6
15
5
3
14
2

Артикул

Название

Примечание

Количество

D87078

VALVE

ripper or other auxiliary equipment, loader or dozer models, identification No. 215, order S300435 section on Figure 8-136, Includes: Ref. 1 - 22

1шт.

D88766

VALVE

clam bucket or ripper, loader models only, identification No. 214, order S300435 section on Figure 8-136, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

spool

2шт.

3

CASR30191

RETAINER

centering spring

2шт.

4

R30192

SPRING

spool

1шт.

5

D78452

BUSHING

detent stud

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

centering spring

1шт.

8

61-432

HEX SOC SCREW,1/4"-20 x 2"

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

D87080

VALVE

primary, Includes: Ref. 10 - 12A

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

12

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

12a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

A47210

PLUG

secondary, Includes: Ref. 13 - 15

1шт.

13

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

19

R30189

SPRING

load check

1шт.

20

D87082

VALVE POPPET

load check

1шт.

21

D78442

VALVE

parts list Figure 8-138, D87078 section uses 2, D88766 section uses 1, order S300440 valve on Figure 8-142

1-2шт.

22

D78453

VALVE

anticavitation and relief, parts list Figure 8-138, D88766 section only, order S300440 valve on Figure 8-142

1шт.
