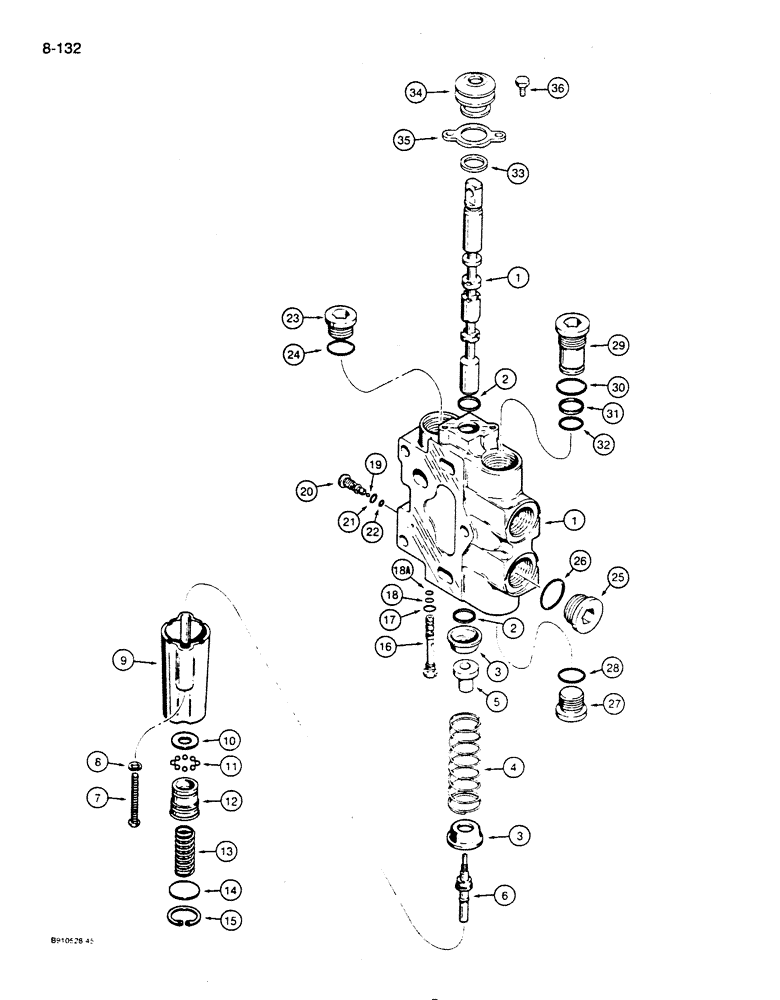

Запчасти Case 855D (8-132) - S300678 BACKHOE SECTION (08) - HYDRAULICS

S300678

VALVE

backhoe, identification No. 261, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool

2шт.

3

R30191

WASHER

centering spring

2шт.

4

R30192

SPRING

spool

1шт.

5

D78473

SPACER

detent stud

1шт.

6

S300679

VALVE, ENG EXHAUST,

VALVE EXHAUST detent

1шт.

7

61-432

HEX SOC SCREW,1/4"-20 x 2"

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

9

N14194

HOUSING

detent

1шт.

10

A48931

WASHER

guide

1шт.

11

211-205

BALL

7/32 inch, grade 25, chrome alloy steel

8шт.

12

N14196

PISTON

detent

1шт.

13

A48934

SPRING

detent

1шт.

14

A48933

RING

piston

1шт.

15

A30975

SNAP RING,1.188", Int, #118

1шт.

D87080

VALVE

primary, Includes: Ref. 16 - 18A

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

17

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

18a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

19

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

A47210

PLUG

secondary, Includes: Ref. 20 - 22

1шт.

20

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

25

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

B port, Incl. Ref 26

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

plug

1шт.

27

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Body, Includes Ref 28

1шт.

28

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

plug

1шт.

29

R30167

PLUG

body, Includes: Ref. 30 - 32

1шт.

R30174

GASKET KIT

Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

31

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

A48938

KIT

body and spool, if used, Includes: Ref. 33 - 36

1шт.

33

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

spool, if used

1шт.

34

A47188

COVER

dust, if used

1шт.

35

A47196

RETAINER

filter, if used

1шт.

36

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer, if used

2шт.
