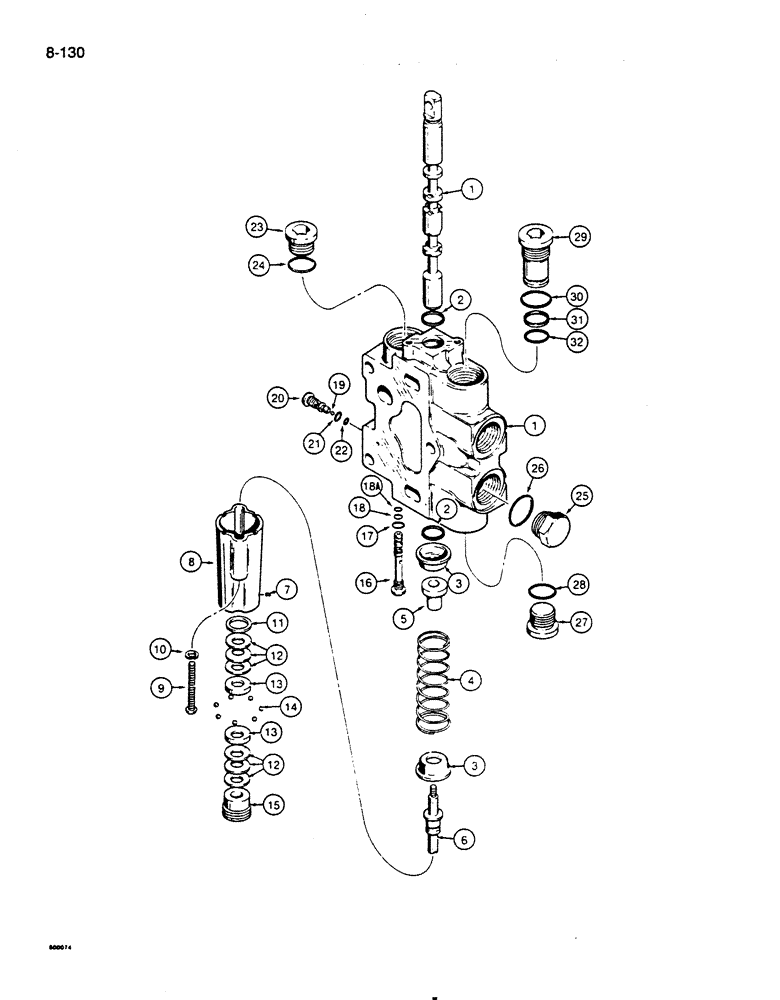

Запчасти Case 855D (8-130) - D87096 BACKHOE SECTION (08) - HYDRAULICS

D87096

VALVE

backhoe, identification No. 220, order S300678 section on Figure 8-132, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

spool

2шт.

3

CASR30191

RETAINER

centering spring

2шт.

4

R30192

SPRING

spool

1шт.

5

D78473

SPACER

detent stud

1шт.

6

D78474

STUD

detent

1шт.

7

R30195

SCREW

special

1шт.

8

R30190

HOUSING

centering spring

1шт.

9

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

D78438

WASHER

special

1шт.

12

D78437

WASHER

belleville spring, detent

6шт.

13

D78439

RETAINER

ball

2шт.

14

211-257

BALL,1/4" Dia

Steel, (6 mm)

7шт.

15

R30194

PLUG

detent adjusting

1шт.

D87080

VALVE

primary, Includes: Ref. 16 - 18A

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

17

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

18a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

19

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 20 - 22

1шт.

20

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

25

273916

PLUG,Hex, 1-5/16" - 12 ORB

B port, Includes Ref. 26

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

plug

1шт.

27

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Body, Includes Ref 28

1шт.

28

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

plug

1шт.

29

R30167

PLUG

body

1шт.

R30174

GASKET KIT

Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

31

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.
