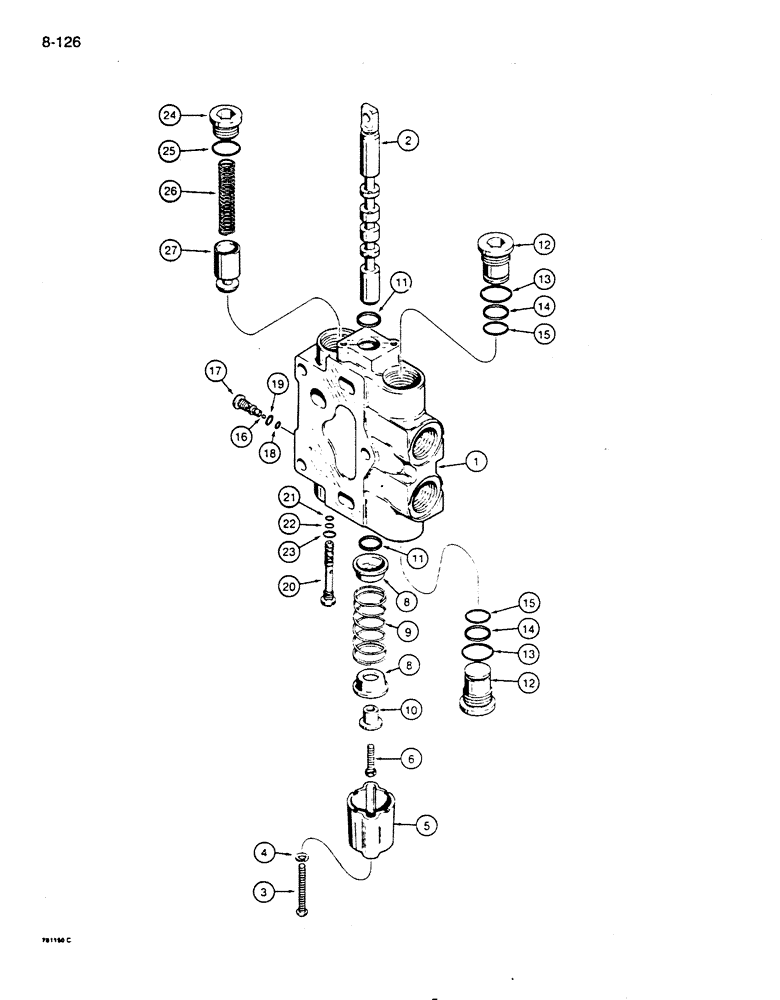

Запчасти Case 855D (8-126) - D87073 DOZER TILT OR ANGLE SECTIONS (08) - HYDRAULICS

D87073

SEGMENT

dozer tilt or angle, identification No. 217, order N14017 section on Figure 8-128, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-432

HEX SOC SCREW,1/4"-20 x 2"

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

5

D78454

HOUSING

centering spring

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

1шт.

8

CASR30191

RETAINER

centering spring

2шт.

9

R30192

SPRING

spool

1шт.

10

D78452

BUSHING

spool

1шт.

11

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

spool

2шт.

12

R30167

PLUG

body, Includes: Ref. 13 - 15

2шт.

R30174

GASKET KIT

Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 17 - 19

1шт.

17

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

D87080

VALVE

primary, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

22

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

23

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

26

R30189

SPRING

load check

1шт.

27

D87082

VALVE POPPET

load check

1шт.
