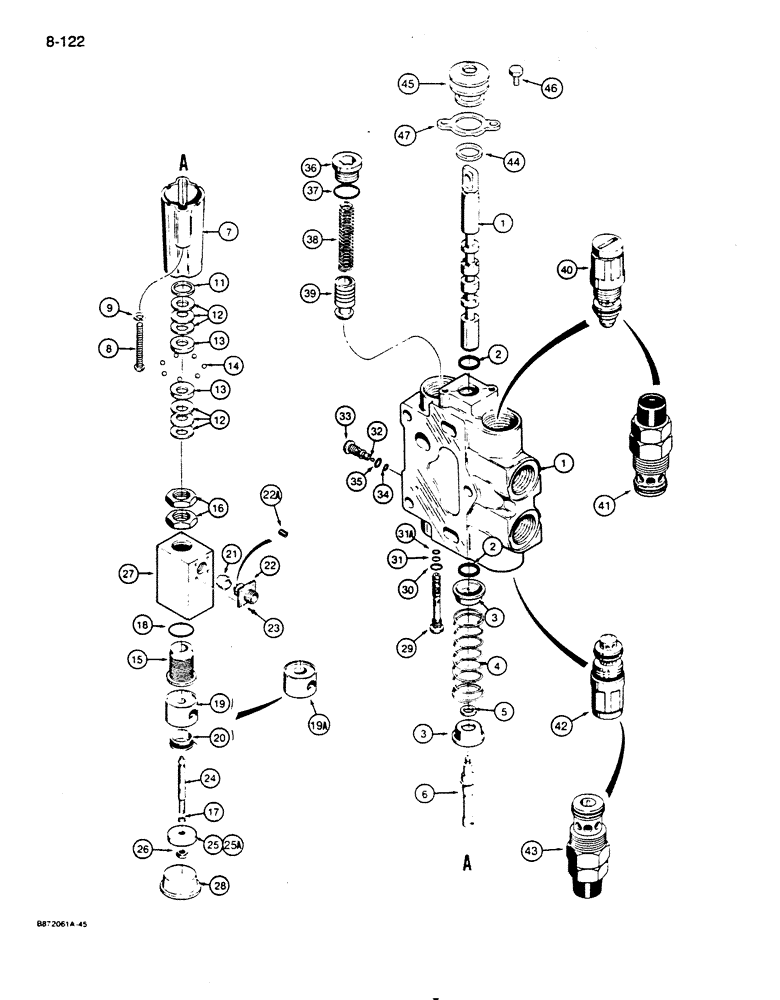

Запчасти Case 855D (8-122) - S300429 AND D88764 LOADER BUCKET SECTIONS (08) - HYDRAULICS

D88764

LOCK VALVE

loader bucket, identification No. 405, no longer used, order S300429 section, Includes: Ref. 1 - 28

1шт.

S300429

LOCK VALVE

loader bucket, identification No. 413

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

spool

2шт.

3

R30191

WASHER

centering spring

2шт.

4

R30192

SPRING

spool

1шт.

5

R30193

BUSHING

detent stud

1шт.

6

N7713

SHAFT

detent

1шт.

7

D87092

HOUSING

centering spring

1шт.

8

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

D78438

WASHER

special

1шт.

12

D78437

WASHER

belleville, spring, detent

6шт.

13

D78439

RETAINER

ball

2шт.

14

211-257

BALL,1/4" Dia

Steel, (6 mm)

7шт.

15

D87091

CONNECTOR, ELEC

CONNECTOR adjusting, magnetic detent

1шт.

16

D87093

JAM NUT

hex, jam, special

2шт.

17

D87094

BACK-UP RING

magnetic detent stud, if used

1шт.

18

N9436

O-RING,0.989" ID x 1.129" OD x 0.07"

solenoid housing

1шт.

19

D87090

SOLENOID

3/8 inch diameter counterbore at end opposite coil, replace with ref 19A, 25A, and 26

1шт.

When replacing Ref. 19 housing, Ref. 20 coil, or Ref. 25 plate, you must replace with all three Refs. 19A, 25A, and 26. Refs. 19, 20, and 25 are used with the solenoid housing with a 3/8" diameter counterbore at the end opposite the coil; items 19A and 25A are used with the solenoid housing with a 5/8" diameter counterbore at the end opposite the coil. Item 26 nut should replace any other nut that may be used in your valve section.

1шт.

19a

N14189

HOUSING

includes: NSS solenoid coil, 5/8" diameter counterbore at end opposite coil, use with N14190 plate (ref 25A) only

1шт.

20

D78429

SOLENOID

for D87090 housing only (ref 19), replace with Ref. 19A, 25A, and 26

1шт.

When replacing Ref. 19 housing, Ref. 20 coil, or Ref. 25 plate, you must replace with all three Refs. 19A, 25A, and 26. Refs. 19, 20, and 25 are used with the solenoid housing with a 3/8" diameter counterbore at the end opposite the coil; items 19A and 25A are used with the solenoid housing with a 5/8" diameter counterbore at the end opposite the coil. Item 26 nut should replace any other nut that may be used in your valve section.

1шт.

21

D78433

PLUG

socket

1шт.

22

R33408

CONNECTOR, ELEC

CONNECTOR magnetic detent

1шт.

22a

NSS

NOT SOLD SEPARAT

INSULATOR - rubber sleeve, detent terminals

2шт.

23

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

#4-20 NC x 3/8"

4шт.

24

N7714

SHAFT

magnetic detent

1шт.

25

D87088

WASHER

detent stud, for D87090 housing only (ref 19), replace with ref 19A, 25A, and 26

1шт.

When replacing Ref. 19 housing, Ref. 20 coil, or Ref. 25 plate, you must replace with all three Refs. 19A, 25A, and 26. Refs. 19, 20, and 25 are used with the solenoid housing with a 3/8" diameter counterbore at the end opposite the coil; items 19A and 25A are used with the solenoid housing with a 5/8" diameter counterbore at the end opposite the coil. Item 26 nut should replace any other nut that may be used in your valve section.

1шт.

25a

N14190

PLATE

detent stud, for N14189 housing only Ref. 19A

1шт.

26

N14191

LOCK NUT

hex, special locking

1шт.

27

D87095

HOUSING

magnetic detent

1шт.

28

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

D88764

LOCK VALVE

loader bucket, identification No. 405, no longer used, order S300429 section, Includes: Ref. 29 - 47

1шт.

S300429

LOCK VALVE

loader bucket, identification No. 413, continued

1шт.

D87080

VALVE

primary, Includes: Ref. 29 - 31A

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

30

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

31

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

31a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

32

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary, Includes: Ref. 33 - 35

1шт.

33

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 34 & 35

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

36

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 37

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

38

R30189

SPRING

load check

1шт.

39

D87082

VALVE POPPET

load check

1шт.

40

D78441

VALVE

circuit relief and anticavitation, D88764 section only, parts list Figure 8-138, order S300433 valve, Ref. 41 below

1шт.

41

S300433

VALVE

circuit relief and anticavitation, parts list Figure 8-142

1шт.

42

D78442

VALVE

circuit relief, D88764 section only, parts list Figure 8-138, order S300440 valve, Ref. 43 below

1шт.

43

S300440

VALVE

circuit relief, parts list Figure 8-142

1шт.

A48938

KIT

body and spool, if used, Includes: Ref. 44 - 47

1шт.

44

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

spool, if used

1шт.

45

A47188

COVER

dust, if used

1шт.

46

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer, if used

2шт.

47

A47196

RETAINER

filter, if used

1шт.
