Запчасти Case 855D (8-120) - DOZER LIFT SECTION (08) - HYDRAULICS

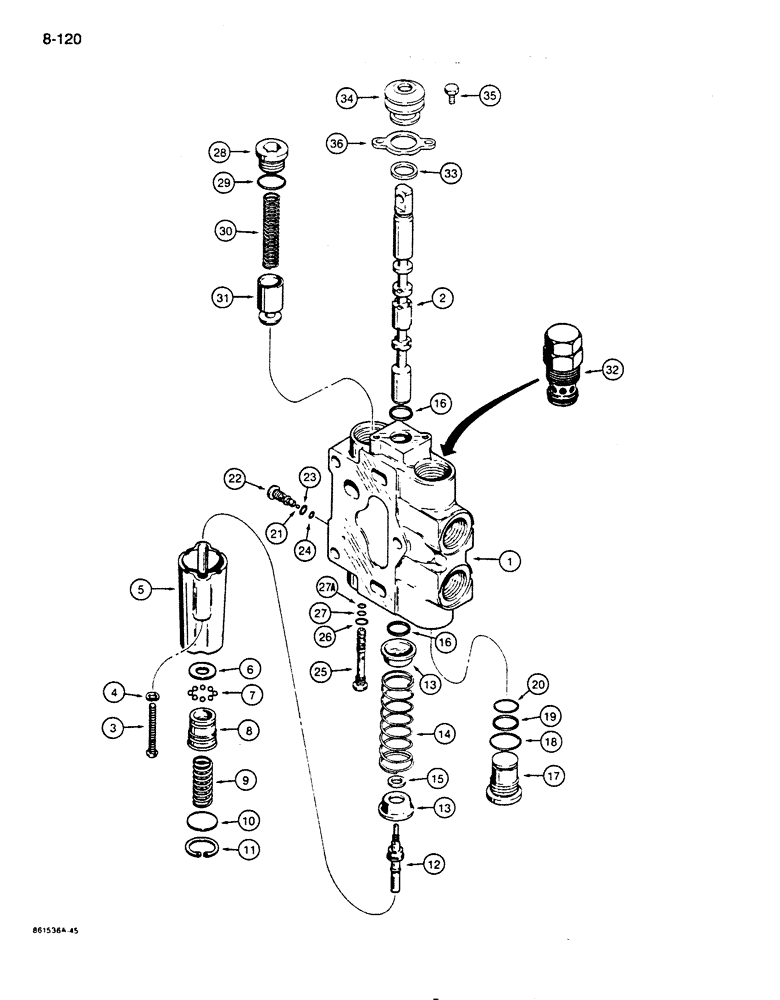

Схема запчастей Case 855D - (8-120) - DOZER LIFT SECTION (08) - HYDRAULICS
31
36
6
7
2
16
23
33
19
14
4
13
5
15
25
24
17
1
26
22
10
16
11
21
18
27a
9
35
29
13
34
32
30
27
20
12
8
3
28

Артикул

Название

Примечание

Количество

N14018

VALVE

dozer lift, ID No. 316, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

5

N14194

HOUSING

detent

1шт.

6

A48931

WASHER

guide

1шт.

7

211-205

BALL

7/32 inch, grade 25, chrome alloy steel

8шт.

8

N14196

PISTON

detent

1шт.

9

A48934

SPRING

detent

1шт.

10

A48933

RING

piston

1шт.

11

A30975

SNAP RING,1.188", Int, #118

1шт.

12

N14193

SHAFT

detent

1шт.

13

CASR30191

RETAINER

centering spring

2шт.

14

R30192

SPRING

spool

1шт.

15

N14192

SPACER

detent shaft

1шт.

16

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool

2шт.

17

R30167

PLUG

section body, Includes: Ref. 18 - 20

1шт.

R30174

GASKET KIT

Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - small, inner

1шт.

21

211-255

BALL,3/16 Dia

grade 50, chrome alloy steel

1шт.

A47210

PLUG

secondary, Includes: Ref. 22 - 24

1шт.

22

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 23 & 24

1шт.

23

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

D87080

VALVE

primary, Includes: Ref. 25 - 27A

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer, 3/8" (9 mm) ID

1шт.

27

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

27a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

28

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

30

R30189

SPRING

load check

1шт.

31

D87082

VALVE POPPET

load check

1шт.

32

N14024

VALVE

anticavitation, parts list Figure 8-142

1шт.

A48938

KIT

body and spool, if used, Includes: Ref. 33 - 36

1шт.

33

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

spool, if used

1шт.

34

A47188

COVER

dust, if used

1шт.

35

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer, if used

2шт.

36

A47196

RETAINER

filter, if used

1шт.

Выбрано товаров: 43
