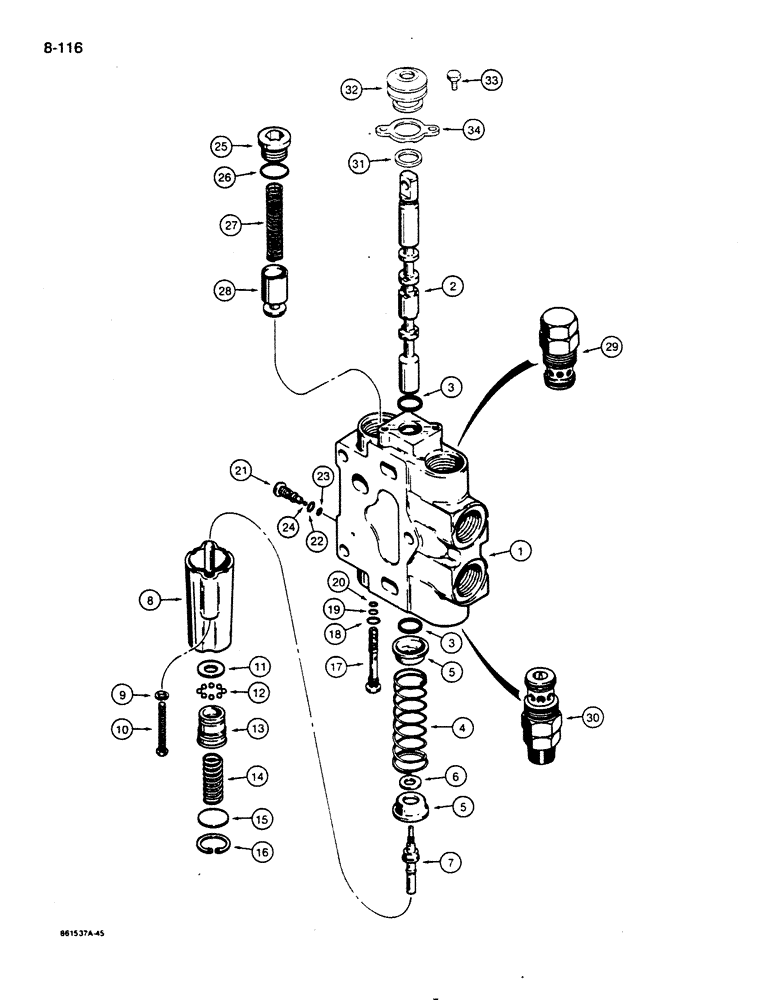

Запчасти Case 855D (8-116) - S300430 LOADER LIFT SECTION (08) - HYDRAULICS

S300430

LOCK VALVE

loader lift, ID No. 319, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool

2шт.

4

R30192

SPRING

spool

1шт.

5

CASR30191

RETAINER

centering spring

2шт.

6

N14192

SPACER

detent shaft

1шт.

7

N14193

SHAFT

detent

1шт.

8

N14194

HOUSING

detent

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

10

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

11

A48931

WASHER

guide

1шт.

12

211-205

BALL

7/32 inch, grade 25, chrome alloy steel

8шт.

13

N14196

PISTON

detent

1шт.

14

A48934

SPRING

detent

1шт.

15

A48933

RING

piston

1шт.

16

A30975

SNAP RING,1.188", Int, #118

1шт.

D87080

VALVE

primary, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer, 3/8" (9 mm) ID

1шт.

19

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

20

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

A47210

PLUG

secondary, Includes: Ref. 21 - 23

1шт.

21

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 22 & 23

1шт.

22

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

23

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

24

211-204

BALL

3/16 inch, grade 25, chrome alloy steel

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

27

R30189

SPRING

load check

1шт.

28

D87082

VALVE POPPET

load check

1шт.

29

N14024

VALVE

anticavitation, parts list Figure 8-142

1шт.

30

S300434

VALVE

anticavitation and circuit relief, parts list Figure 8-142

1шт.

A48938

KIT

body and spool, if used, Includes: Ref. 31 - 34

1шт.

31

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

spool, if used

1шт.

32

A47188

COVER

dust, if used

1шт.

33

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer, if used

2шт.

34

A47196

RETAINER

filter, if used

1шт.
