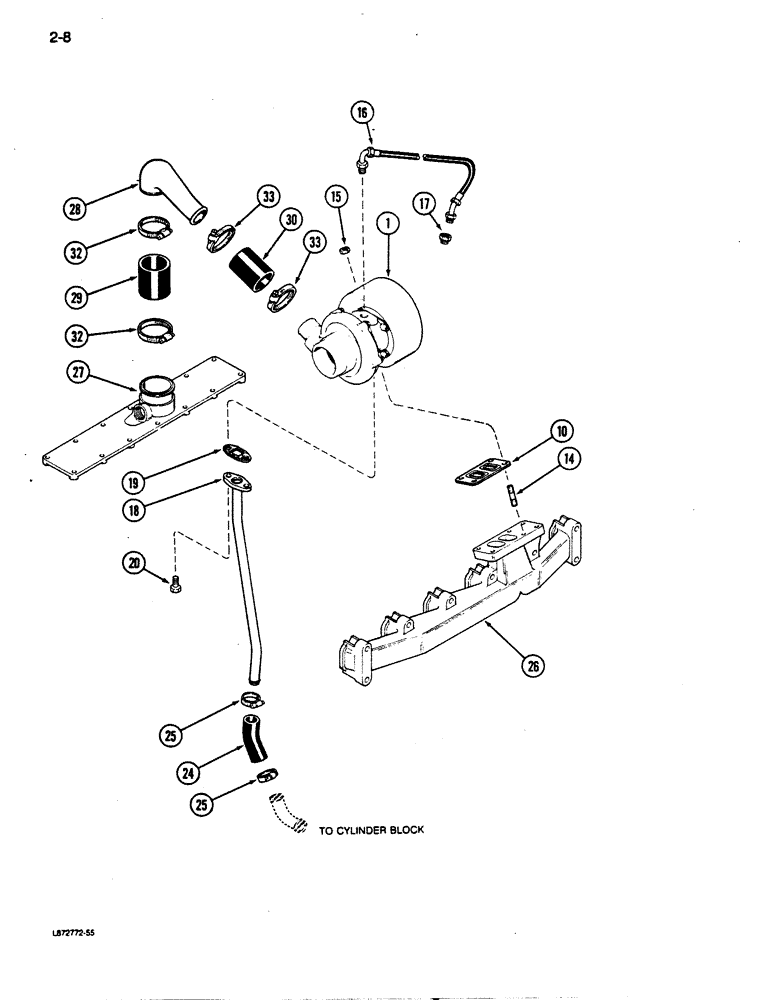

Запчасти Case 855D (2-08) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine

1шт.

10

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

14

J905417

STUD

turbocharger mounting

4шт.

15

J901961

NUT

hex, turbocharger mounting

4шт.

16

J909548

HOSE

oil supply, turbocharger

1шт.

17

A77457

FITTING

CONNECTOR supply hose (Replaces A77437)

1шт.

18

J918583

TUBE

oil drain (Replaces J905202)

1шт.

19

J914388

GASKET

drain tube (J901805)

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

J903745

LARGE HOSE

HOSE,LARGE turbocharger oil drain

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Turbocharger drain hose

2шт.

26

REF

INSTRUCTION

exhaust (See Figure 2-06)

1шт.

27

REF

INSTRUCTION

intake manifold (See Figure 2-06)

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

air intake

1шт.

29

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube (Replaces J904422)

1шт.

30

J916166

INTAKE AIR HOSE

air intake (Replaces J901804)

1шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
