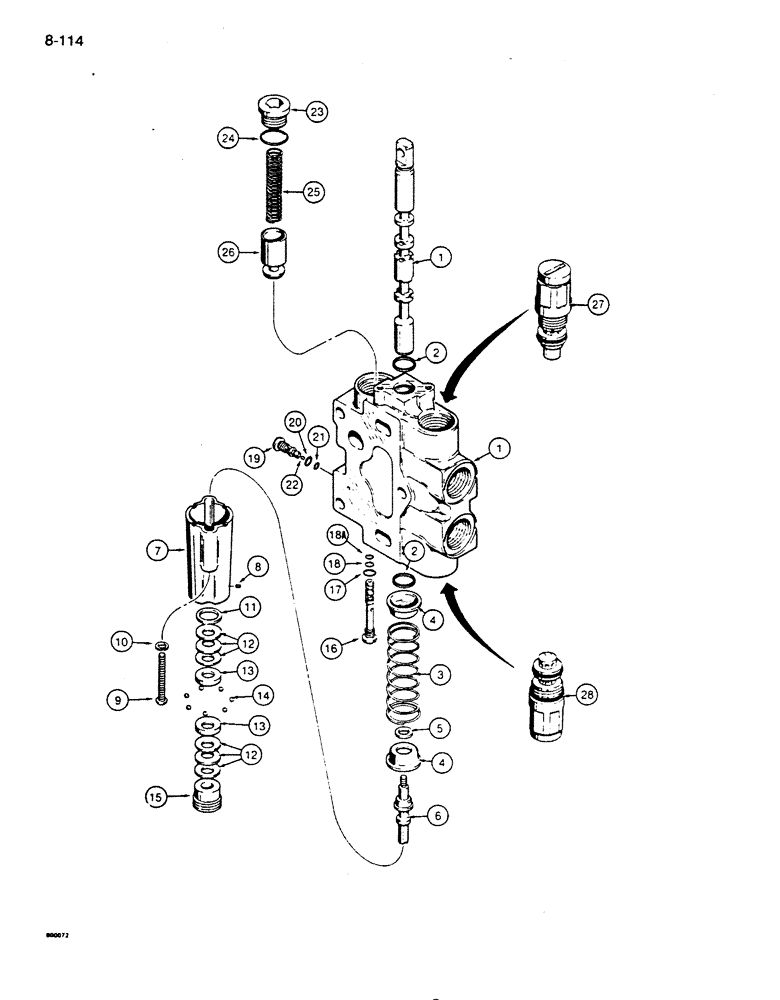

Запчасти Case 855D (8-114) - D88765 LOADER LIFT SECTION (08) - HYDRAULICS

D88765

LOCK VALVE

loader lift, identification No. 306, no longer used, order S300430 section, Figure 8-116, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool

2шт.

3

R30192

SPRING

spool

1шт.

4

CASR30191

RETAINER

centering spring

2шт.

5

R30198

WASHER

detent stud

1шт.

6

D78447

SHAFT

detent

1шт.

7

R30190

HOUSING

centering spring

1шт.

8

R30195

SCREW

special

1шт.

9

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

D78438

WASHER

special

1шт.

12

D78437

WASHER

belleville, spring, detent

6шт.

13

D78439

RETAINER

ball

2шт.

14

211-257

BALL,1/4" Dia

Steel, (6 mm)

7шт.

15

R30194

PLUG

detent adjusting

1шт.

D87080

VALVE

primary, Includes: Ref. 16 - 18A

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

17

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Outer

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

center, 1/4" (6 mm) ID

1шт.

18a

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

Inner, (5 mm)

1шт.

A47210

PLUG

secondary, Includes: Ref. 19 - 21

1шт.

19

A47204

PLUG

shuttle

1шт.

R30185

SEAL KIT

Includes: Ref. 20 & 21

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

211-204

BALL

3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

25

R30189

SPRING

load check

1шт.

26

D87082

VALVE POPPET

load check

1шт.

27

D78449

VALVE

anticavitation, parts list Figure 8-140, order N14024 valve on Figure 8-142

1шт.

28

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 8-138, order S300434 valve on Figure 8-142

1шт.

The pressure setting of this repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
