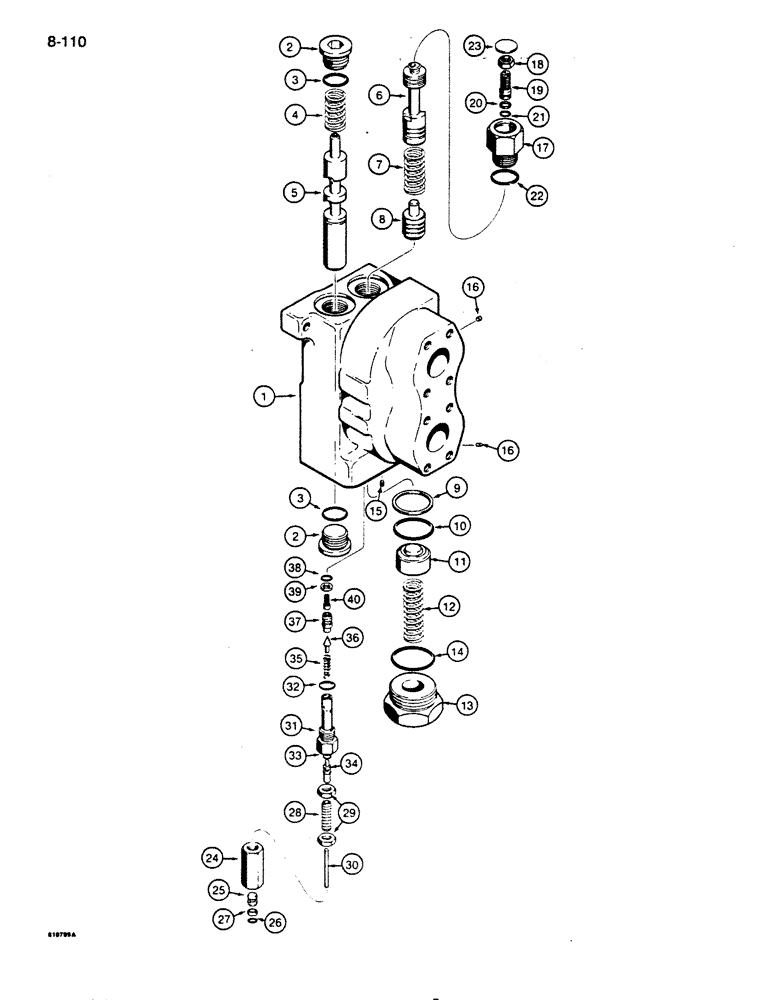

Запчасти Case 855D (8-110) - N7485 INLET AND OUTLET SECTION, USED ON DOZER MODELS W/ A BACKHOE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
N7485
VALVE
inlet and outlet, identification No. 108, used on dozer models with a backhoe only, Includes: Ref. 1 - 22
1шт.
For the inlet/outlet section used on all other models see Figure 8-108.
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - section
1шт.
2
9841223
PLUG,1-1/16" - 12 ORB
2шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Plug
1шт.
4
D78464
SPRING
regeneration spool
1шт.
5
NSS
NOT SOLD SEPARAT
SPOOL - regeneration
1шт.
6
NSS
NOT SOLD SEPARAT
SPOOL - flow control
1шт.
7
D78458
SPRING
flow control spool
1шт.
8
NSS
NOT SOLD SEPARAT
SEAT - spring, flow control spool
1шт.
9
D87079
RING
piston O-ring
1шт.
10
G34001
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
piston
1шт.
11
D78461
PISTON ASSY.
flow control
1шт.
12
R30171
SPRING
piston
1шт.
13
D78462
PLUG
hex head, Includes: Ref. 14
1шт.
14
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
Plug
1шт.
15
D78455
PLUG
pressure
1шт.
16
D78456
PLUG
flow
2шт.
D87077
PLUG
flow control spool, Includes: Ref. 17 - 22
1шт.
17
NSS
NOT SOLD SEPARAT
BODY - plug
1шт.
18
25-146
JAM NUT,Jam, 3/8"-16, G5
1шт.
19
NSS
NOT SOLD SEPARAT
SCREW - adjusting
1шт.
20
D87094
BACK-UP RING
screw O-ring
1шт.
21
379366R1
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
adjusting screw
1шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Plug
1шт.
23
D87075
COVER
flow control spool plug
1шт.
N7801
VALVE
inlet/outlet section, dual stage, Includes: Ref. 24 - 40
1шт.
The repair main relief valve is not preset at the correct pressure setting for this application. See the service manual for the correct setting and procedure.
1шт.
24
NSS
NOT SOLD SEPARAT
BODY - piston
1шт.
25
NSS
NOT SOLD SEPARAT
PISTON - outer, main relief assembly
1шт.
26
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
piston
1шт.
27
D71056
RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk
piston O-ring
1шт.
28
N7491
ADJUSTMENT SCREW,3/8" - 24 x 1.32"
adjusting, main relief assembly
1шт.
29
86585245
SPECIAL NUT,JAM, 5/8" - 18
2шт.
30
N7490
DOWEL
adjusting screw
1шт.
31
NSS
NOT SOLD SEPARAT
BODY - main relief assembly
1шт.
32
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Body, outer
1шт.
33
A51274
O-RING,0.145" ID x 0.285" OD
body, inner
1шт.
34
NSS
NOT SOLD SEPARAT
PISTON - inner, main relief assembly
1шт.
35
D78468
SPRING
plunger
1шт.
36
D78469
PLUNGER
relief assembly
1шт.
37
NSS
NOT SOLD SEPARAT
SEAT - plunger
1шт.
38
A27358
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
plunger seat
1шт.
39
L35305
RING
seat O-ring
1шт.
40
NSS
NOT SOLD SEPARAT
FILTER - main relief assembly, wire-mesh,cylinder-shaped
1шт.
